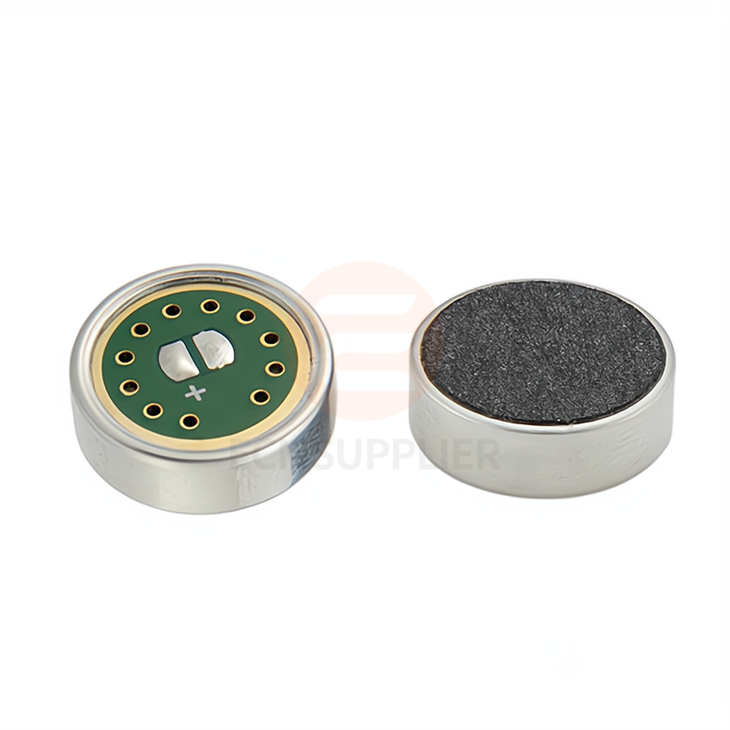

14mm Cardioid Microphone Capsule
The 14mm Cardioid Microphone Capsule is designed to record sound accurately, which makes it a great choice for many professional audio tasks. Because it is sensitive to -44±2dB, this capsule can pick up even the smallest sounds, which means you can be sure of high-quality records. The one-way pickup design picks up sound from the front, which successfully cuts down on background noise and echoes, which is very important in loud places.
Features
-
High Sensitivity: -44±2dB, which makes sure that you can record clear sound.
-
Focused sound pickup in a single direction, which cuts down on unwanted noise.
-

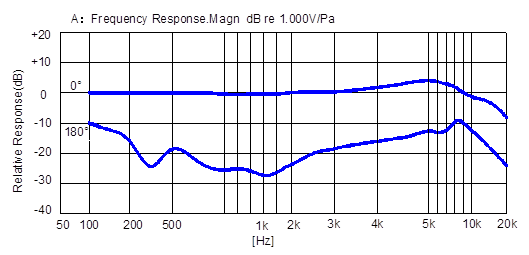

It can pick up sounds from 100Hz to 20000Hz, which is called "wide frequency response."
-

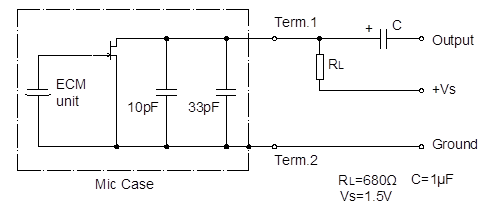

For great data integrity, low output impedance of 680 ohms is recommended.
-
High Maximum SPL: 110dB, which means it can handle loud sound sources without distorting them.
-
Good Signal-to-Noise Ratio: 66dB for clear sound.
-

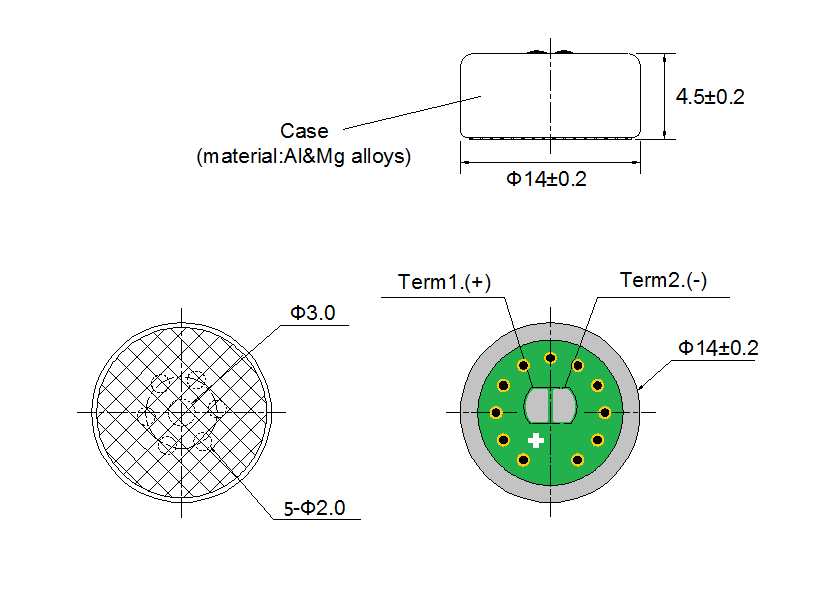

14 mm in diameter and 4.5 mm thick, making it very small.
Applications
specifications
| Name | Parameter |
| Sensitivity |
-44±2dB |
| Output impedance | 680Ω |
| Directivity | unidirectional |
| Frequency range |
100-20000Hz |
| Maximum SPL | 110 dB |
| S/N Ratio | 66dB |
| Dimensions |
14*4.5mm |
|
|
|
Why Choose Us
Our 14mm Cardioid Microphone Capsule isn't just
another audio part; it's the result of careful
research and cutting-edge production methods. Since our
plant only makes microphone parts, we put quality first at
every stage of the process, from choosing the materials to
putting them together.
Our automatic production lines make sure that every unit
works the same way, which isn't possible with human
methods. To make sure that every capsule meets the
greatest standards for sturdiness and dependability, we
use strict quality control measures such as edge closing
and airtightness testing.
When you choose our microphone capsules, you're
working with a company that knows how important accurate
sound capture is and is dedicated to making parts that go
above and beyond what the industry expects. Because we
focus on new ideas and quality control, our goods always
work better than others. This makes us a reliable source
for professional audio needs.
