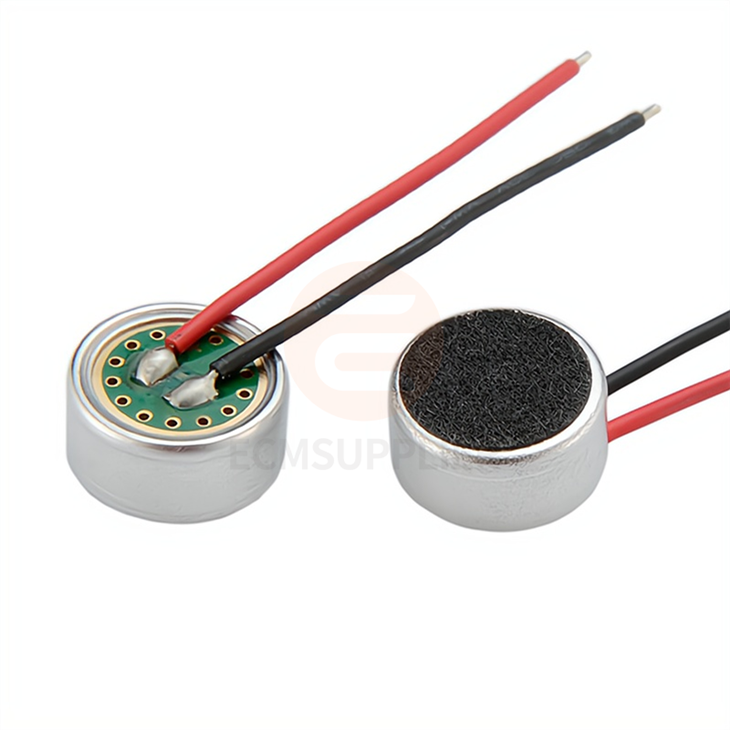

1045 Single Directional Microphone with Soldering Wired

The 1045 Single Directional Microphone with Soldering Wired is engineered to deliver precise sound capture with its high sensitivity of -53 ± 2dB and uni-directional pickup pattern. This design focuses on capturing sound from a specific direction while minimizing ambient noise, making it suitable for applications requiring clear audio reproduction.



• High Sensitivity: -53±2dB for detailed sound capture.
• Unidirectional: Uni-directional design for focused audio recording.
• Wide Frequency Range: 100-16000Hz suitable for diverse applications.

• Compact Size: Dimensions of 10 × 4.5mm for easy integration.





Name	Parameter
Sensitivity	-53 ± 2dB
Output impedance	2.2KΩ
Directivity	uni

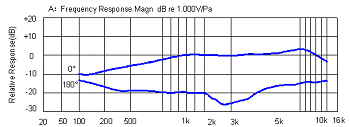

Frequency range	100-16000Hz
Maximum SPL	110dB
S/N Ratio	50dB

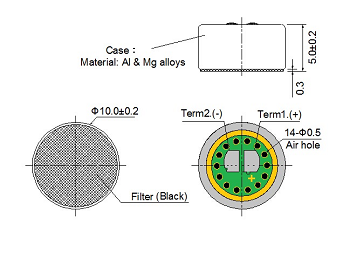

Dimensions	10 * 4.5mm
