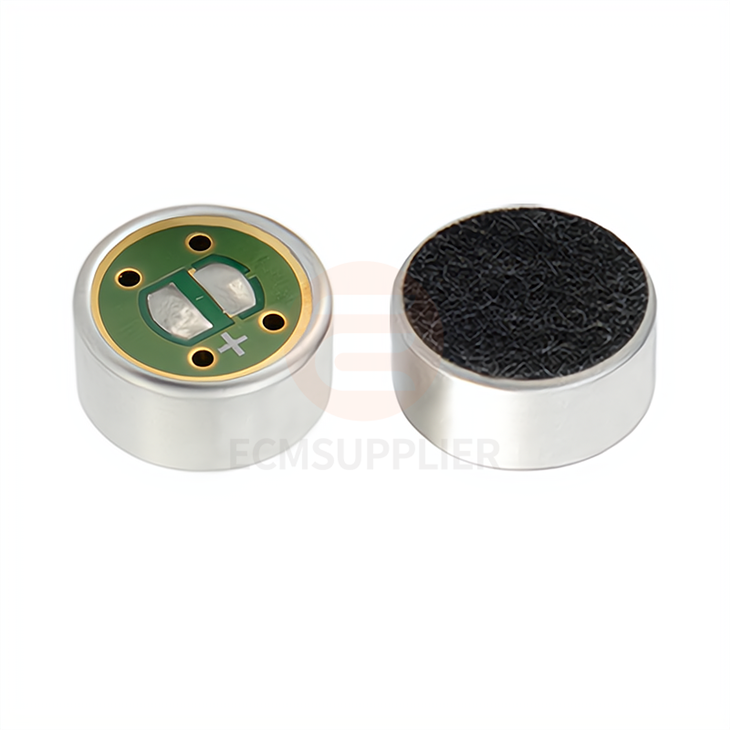

9750 Uni-directional Microphone

Designed for professional audio capture, the 9750 Uni-directional Microphone features a compact 9.7 × 5.0mm footprint with -47±2dB sensitivity, 680Ω output impedance, and a frequency response of 100–16000Hz. Its uni-directional polar pattern ensures voice clarity by isolating the main sound source and reducing background noise. With a signal-to-noise ratio of 55dB and the ability to handle up to 110dB SPL, this microphone capsule is suitable for headset systems, lavalier microphones, and other communication or recording devices where consistent speech quality and compact integration are key.



• High Sensitivity: -47±2dB makes sure that sound is captured accurately.
• Cardioid pickup design for focused sound recording in one direction.
• Wide Frequency Range: 100Hz to 16000Hz for a variety of uses.
• The small size (9.7 x 5.0 mm) makes it perfect for patterns with limited room.



Noise-Isolating Capsule for Communication Headsets Perfect for business, telecommunication, or gaming headsets, this uni-directional microphone capsule filters ambient noise to prioritize voice clarity. Its small size and stable electrical characteristics ensure seamless integration into slim headset designs while maintaining user comfort and high speech intelligibility.	Discreet Audio Capture for Lavalier Mics This compact voice microphone element is ideal for lavalier systems used in interviews, presentations, and video content creation. The directional pickup pattern ensures accurate speech recording, minimizing environmental noise. Its slim capsule fits securely in lapel mic housings, delivering reliable audio even in dynamic, mobile settings.



Name	Parameter
Model	ECM-F9750UL-47
Sensitivity	-47±2dB

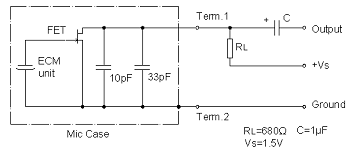

Output impedance	680Ω
Directivity	uni

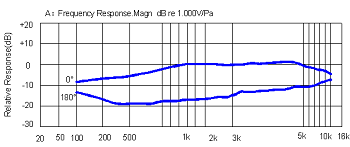

Frequency range	100-16000HZ
Maximum SPL	110dB
S/N Ratio	55dB

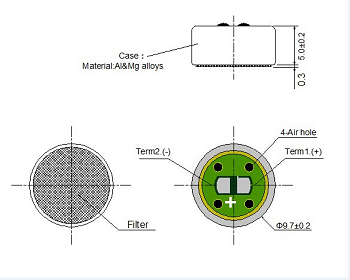

Dimensions	9.7*5.0mm





Our commitment to sustainability drives us to reduce waste and pollution throughout our production process. Every 9750 Uni-directional Microphone is manufactured in an environmentally responsible facility while still delivering consistent voice pickup and performance. We help your devices stay eco-conscious without compromising quality.
