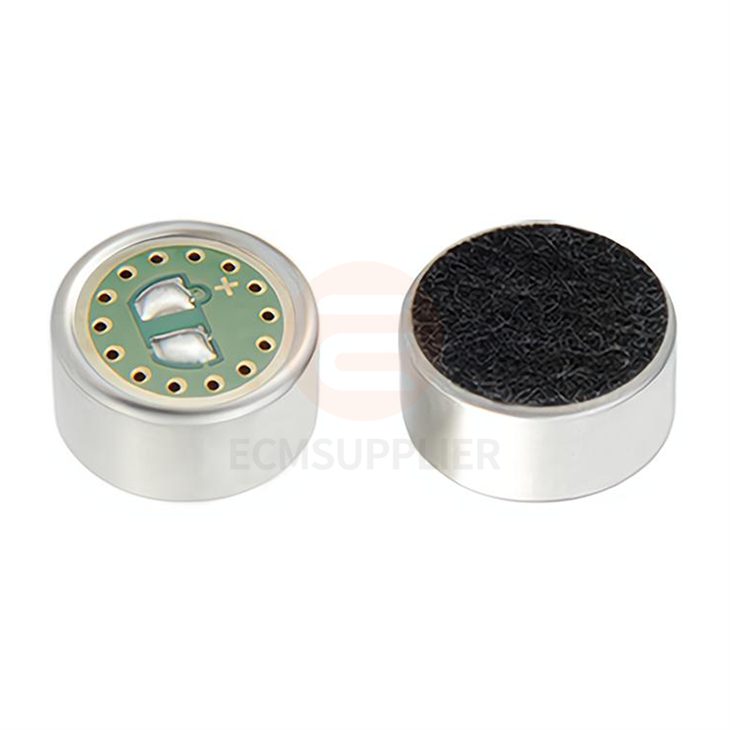

10mm Guitar Pickup Microphone Capsule

This 10mm Guitar Pickup Microphone Capsule is designed to work with guitar and other instrument mics and captures sound accurately and clearly. With a sensitivity of -53±2dB, it can pick up on small differences in instruments, making sure that every note is played clearly. The capsule works between 100Hz and 16000Hz, which is a wide frequency range that catches the full depth and complexity of the instrument's sound.

The single-directional pickup design focuses on the sound source, reducing background noise and improving the quality of the recorded sound. Its small size (10 x 4.5 mm) makes it perfect for putting into different types of instrument pickups, giving steady performance without adding bulk. The capsule also has a signal-to-noise ratio of 50dB and can handle sound pressure levels of up to 110dB, so it works well even in loud places.



• Unidirectional Pickup Pattern: This pattern focuses on the sound of the instrument, cutting down on background noise to make the recording better and more accurate.
• High Sensitivity: Its -53±2dB sensitivity lets you pick up on small details and variations in instrument sounds.
• Wide Frequency Range: The 100Hz to 16000Hz range gives you a full, rich sound that's great for music.
• Little Size: This capsule is only 10 x 4.5 mm, so it fits perfectly into guitar and other instrument microphones without adding any extra bulk.
• High Maximum SPL: It can handle up to 110dB SPL, which makes it good for performance spaces with a lot of people.
• Balanced S/N Ratio: A 50dB signal-to-noise ratio makes sure that there is little background noise, which results in a clearer sound.





Name	Parameter
Sensitivity	-53±2dB
Output impedance	2.2KΩ
Directivity	unidirectional
Frequency range	100-16000HZ
Maximum SPL	110 dB
S/N Ratio	50dB

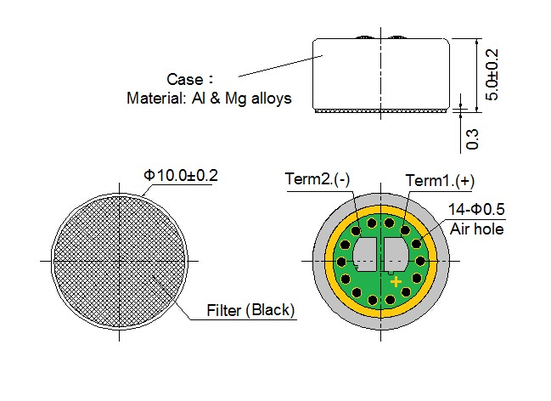

Dimensions	10*4.5mm





We offer full product solutions, such as professional testing results, correction actions, and expert help that is suited to your needs. We know how to make sure that the 10mm Guitar Pickup Microphone Capsule works well and is reliable, just the way you want it to.
