14mm High-Fidelity Unidirectional Mic Capsule

Professionals that need accuracy and dependability in their audio recording tools will find 14mm High-Fidelity Unidirectional Mic Capsule perfect. This capsule, with a sensitivity of -43±2dB, is designed to detect even the best sound nuances, therefore guaranteeing exceptional recording quality in any setting. Ideal for usage in loud or uncontrolled conditions, the unidirectional pickup design concentrates on sound originating from the front, therefore decreasing interference from surrounding noise.



• High sensitivity guarantees precise and clear sound capture: -43±2dB.
• Focused audio pickup with lowest background noise forms a unidirectional pattern.

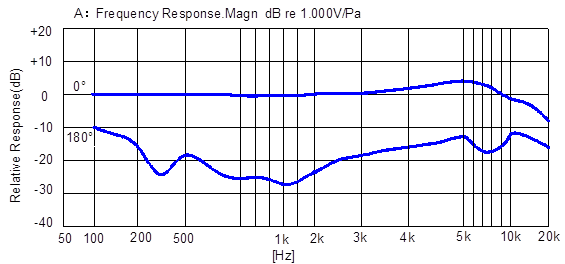

• Rich and detailed sound is produced by extended frequency range: 100–20000Hz.
• Stable and effective signal transmission depend on low output impedance, 680Ω.
• High Maximum SPL: 110dB, able to handle without distortion powerful sound sources.
• Excellent S/N ratio: 75dB provides rather clear sounds.

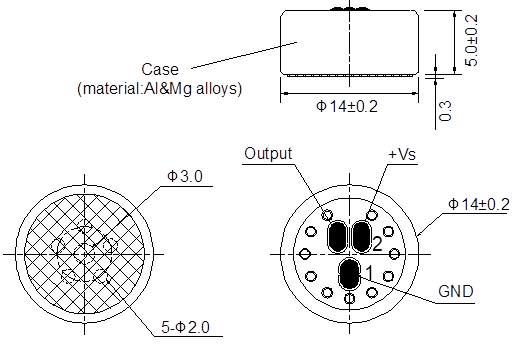

• Small Design: 5.0mm thickness for flexible integration, 14mm diameter.





Name	Parameter
Sensitivity	-43±2dB
Output impedance	680Ω
Directivity	unidirectional
Frequency range	100-20000Hz
Maximum SPL	110 dB
S/N Ratio	75dB
Dimensions	14*5.0mm





Being a top producer of microphones, we provide years of knowledge and innovative technologies to help create each 14mm High-Fidelity Unidirectional Mic Capulet. Our modern automated systems guarantee that every item satisfies exacting quality criteria, therefore offering you dependable, consistent components that improve your audio equipment. Our emphasis on strict quality control and precise engineering will help you to rely on us to provide goods fit for professional audio situations.
