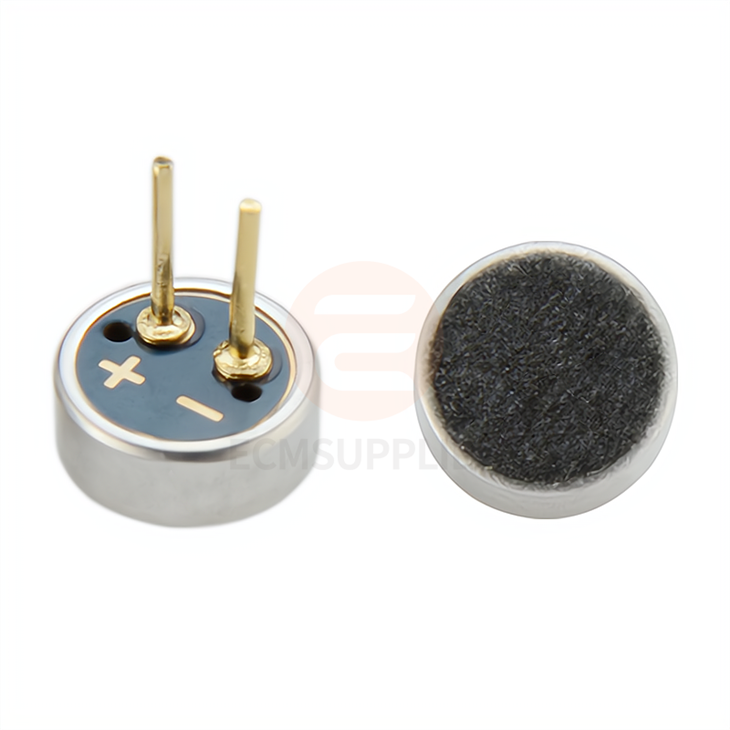

4015 Single Directional Microphone with Pin
Featuring a unidirectional polar pattern, wide 50Hz–20kHz frequency response, and -38±2dB sensitivity, this microphone captures rich, focused sound while reducing background noise. Its miniature 4.0 × 1.5mm size makes it ideal for wearable audio devices, including compact headset booms and discreet lavalier microphones. Designed for demanding voice applications, it offers high signal integrity, low distortion, and clear vocal pickup in dynamic environments.
Features
- Our microphones guarantee precise and clear sound capture by their great sensitivity.
- Our microphones have great signal-to-noise ratios, meant to reduce background noise.
- Built to resist demanding surroundings, our microphones are dependable and long-lasting.
- Appropriate for a broad spectrum of uses, including consumer electronics, industrial machinery, and professional audio systems is flexible application.
Applications
|
|
|
|
Clear Voice Transmission for Professional
Headsets Tailored for headset applications, this compact directional capsule captures speech with clarity while minimizing noise from the environment. It's ideal for use in call centers, gaming headsets, or office communication systems where vocal clarity and noise suppression are key. |
Clean, Focused Sound for Lavalier Systems Engineered for lavalier microphones, this ultra-small capsule delivers focused sound pickup without distracting ambient noise. Its unidirectional response and slim profile make it ideal for presentations, interviews, and broadcast setups where discreet placement and clear audio are essential. |
specifications
| Name | Parameter |
| Model | ECM-B4015UP38-YL |
| Sensitivity | -38±2dB |
| Output impedance | 2.2KΩ |
| Directivity | uni |

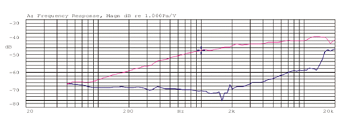

| Frequency range |
50-20000Hz |
| Maximum SPL | 110dB |
| S/N Ratio | 60dB |

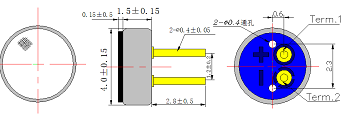

| Dimensions | 4.0*1.5mm |
|
|
|
Why Choose Us
What makes us stand out is our 15,000㎡ streamlined production facility built specifically for audio component manufacturing. This large-scale, purpose-built space ensures highly efficient output and strict process control. As a result, each microphone capsule is produced with exceptional uniformity, helping headset and microphone brands meet production deadlines without compromising quality. For manufacturers seeking a dependable supply chain partner, our capacity and consistency make a critical difference.
