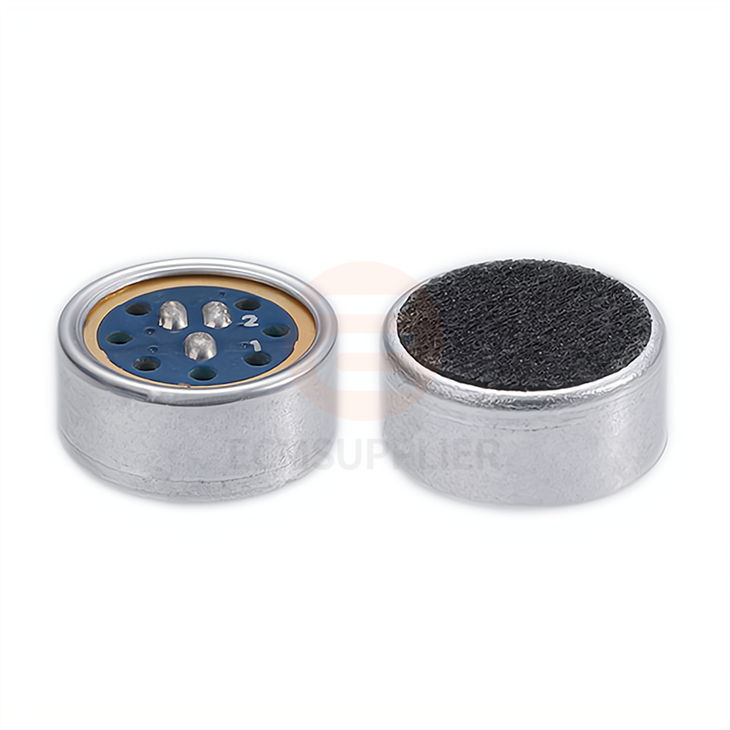

10mm Unidirectional Microphone Capsule

Designed for use in premium helmet applications, 10mm Unidirectional Microphone Capsule offers focused and clear audio collecting. Its frequency range is 100–16000Hz and its sensitivity is -42±2dB, therefore generating a wide and balanced sound profile.





• Unidirectional Pickup Pattern: Reduces background noise for clearer, more focused audio.
• High Sensitivity: -42±2dB ensures accurate sound capture, even at lower volumes.
• Compact Design: At just 10 x 4.5mm, it's ideal for space-constrained headset designs.
• Wide Frequency Range: 100-16000Hz, delivering balanced sound for various applications.





Name	Parameter
Sensitivity	-42±2dB
Output impedance	2.2KΩ
Directivity	unidirectional

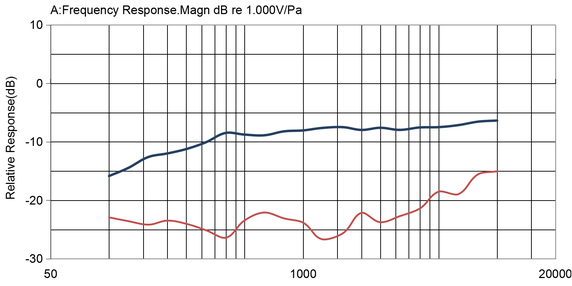

Frequency range	100-16000HZ
Maximum SPL	110 dB
S/N Ratio	64dB

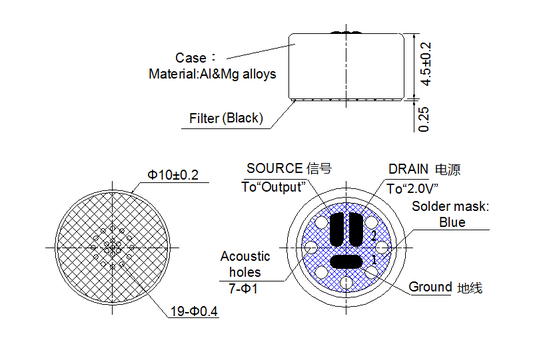

Dimensions	10*4.5mm





Selection of the ideal 10mm Unidirectional Microphone Capsule depends mostly on performance and quality. Our devices guarantee low distortion and minimum noise in any application by means of their outstanding clarity, high fidelity, and great signal-to---- noise ratio. Our goal is to provide top-notch microphone capsules that not only satisfy but surpass industry criteria.

We can provide customizable solutions catered to your particular requirements, including non-standard designs and technical assistance guaranteeing best integration and performance. Select us for a microphone capsule that really represents our commitment to excellence and creativity.
