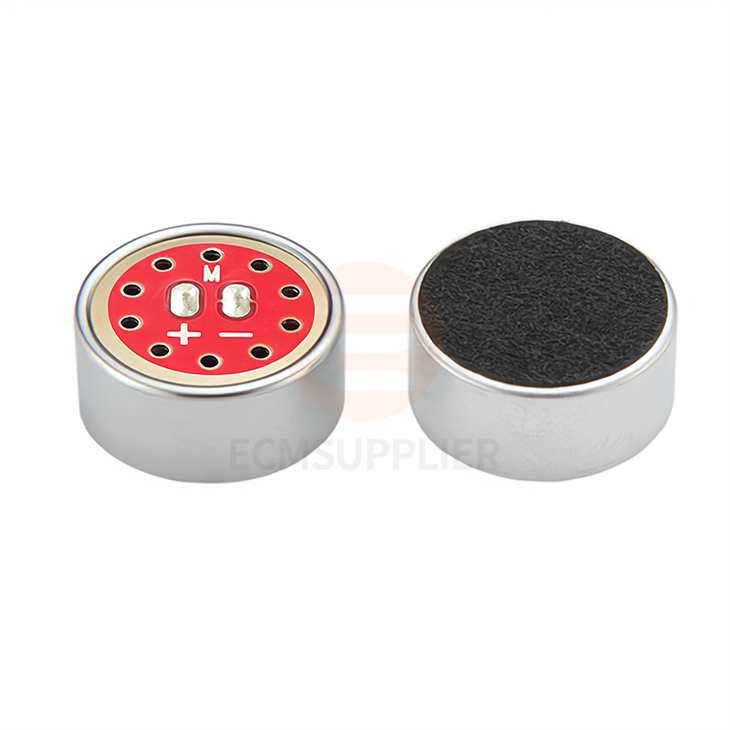

1463 Electret Condenser Microphone

Engineered for vocal precision and broadcast stability, the 1463 Electret Condenser Microphone features a unidirectional polar pattern, high sensitivity of -38±2dB, and a wide 100–16000Hz frequency response. Its 2.2KΩ output impedance supports smooth integration into professional audio circuits, while the high signal-to-noise ratio of 70dB ensures low distortion and clear output. The 14 × 6.3mm design offers a balance between acoustic performance and compact housing, making it ideal for use in voice recording microphones, content creation devices, and communication tools requiring articulate sound pickup.



• High sensitivity: -38±2dB for carefully and correctly recording sounds.
• Simple integration with a broad variety of devices is made possible by 14 x 6.3 mm in small size.
• Highest Maximum SPL: 110dB to preserve audio quality at high SPL values.
• A 70dB S/N ratio calls for both lowered background noise and enhanced clarity.



Studio Vocal Recording Capsule Ideal for vocal microphones used in podcasting, singing, or voice-over recording, this microphone capsule captures natural vocal tones while minimizing background noise. Its unidirectional pickup delivers focused sound from the front, ensuring detailed vocal reproduction for professional or home studios.	Broadcast-Grade Audio Capture This condenser microphone capsule is well-suited for broadcast microphones in live streaming, radio, or on-camera use. With its wide frequency response and noise rejection features, it ensures clear, consistent speech capture even in dynamic recording environments, helping producers maintain broadcast-level audio standards.





Name	Parameter
Model	ECM-B1463UML38-727
Sensitivity	-38±2dB
Output impedance	2.2KΩ
Directivity	uni

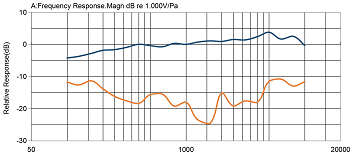

Frequency range	100-16000HZ
Maximum SPL	110dB
S/N Ratio	70dB

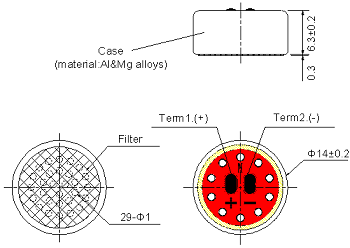

Dimensions	14*6.3mm





Each 1463 Electret Condenser Microphone is developed with a focus on consistent voice clarity and quality assurance. From diaphragm design to supply chain control, our production process emphasizes stability and low variability-ideal for audio engineers and brands seeking long-term reliability and acoustic uniformity in professional recording environments.
