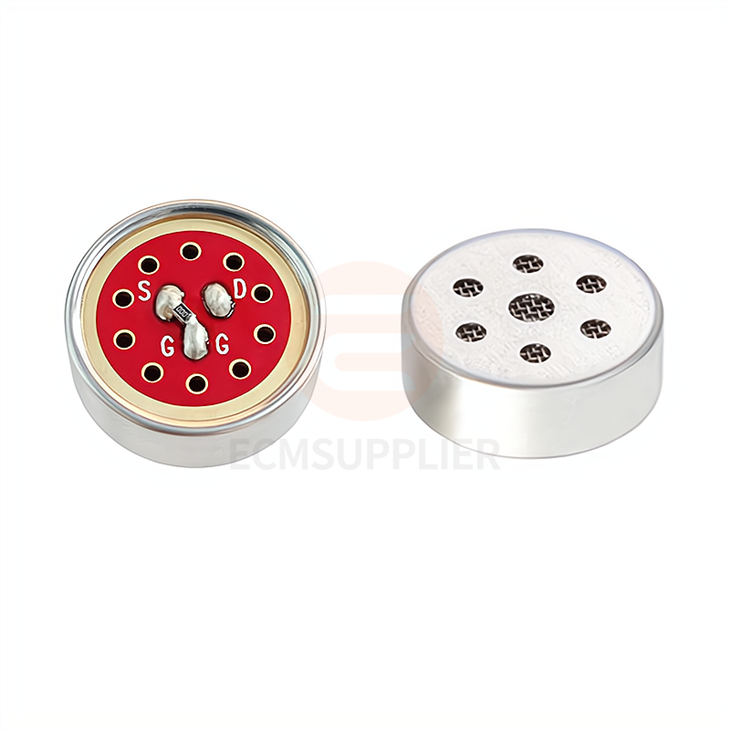

1655 Microphone Compatible With U87 Microphone Capsule

This compact 16mm uni-directional electret microphone capsule is crafted for high-precision audio capture in professional environments. With its exceptional sensitivity and broad frequency coverage, it ensures detailed, accurate sound reproduction across studio, broadcast, and live performance settings.

Send Inquiry

Product Introduction

Designed for top-tier performance, this capsule guarantees pristine sound clarity with a sensitivity of -45±2dB and a wide frequency range. Its uni-directional configuration minimizes interference from background noise, ensuring clear and focused audio. Built to withstand high SPL levels, it guarantees steady performance in dynamic settings, making it the perfect choice for applications where high-quality sound capture is critical.

Features

U87-Compatible Design: Tailored for U87-style microphone assemblies, ideal for K-song devices and streaming microphones.
Enhanced Vocal Performance: Offers thick low-end, clear mids, and bright highs-ideal for voice-centric applications.
Noise Control: High signal-to-noise ratio of 70dB ensures clean audio capture with minimal background noise.
High SPL Handling: Handles sound pressure levels up to 115dB, suitable for dynamic and loud environments.
Compact & Versatile: Small form factor makes it easy to integrate into various OEM microphone designs.

Applications

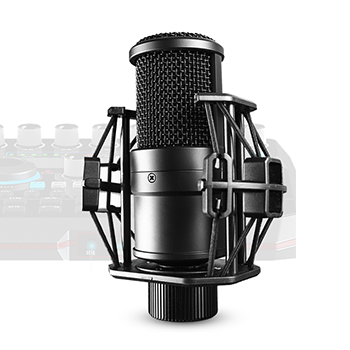

Live Performance Microphone Capsule Perfect for capturing vocals in high-energy live settings, this capsule ensures crystal-clear sound even amidst loud noise, making it ideal for musicians who need precise vocal capture.	Broadcast Professional Microphone Capsule Ideal for radio, podcasts, and other broadcast applications, this capsule delivers accurate voice capture while minimizing background noise, ensuring high-quality audio for professional broadcasts.

specifications

Name	Parameter
Model	ECM-B1655UL45-541
Sensitivity	-45±2dB

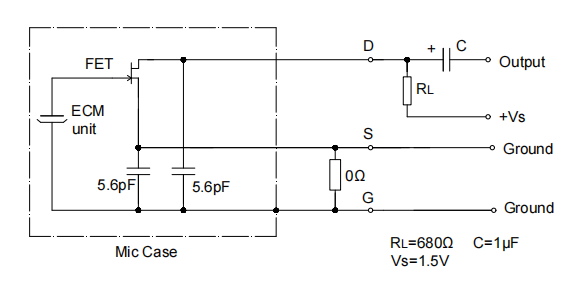

Output impedance	680Ω
Directivity	Uni-directional

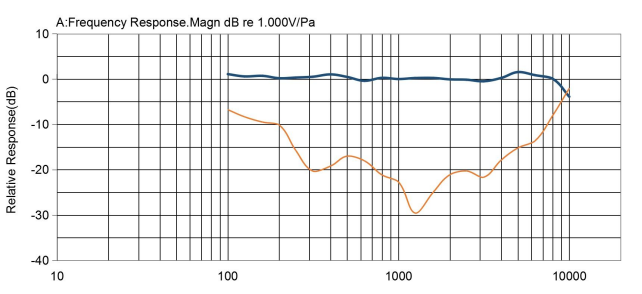

Frequency range	100-10KHz
Maximum SPL	115dB
S/N Ratio	70dB

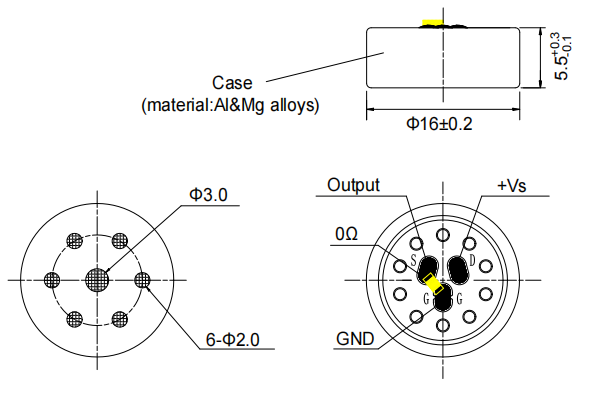

Dimensions	16 x 5.5mm

Why Choose Us

This capsule is ideal for microphone brands and manufacturers seeking a reliable, high-performance replacement for U87-style microphones. It combines the acoustic warmth of dynamic-style sound with the precision and low noise of electret technology, offering consistent quality across production batches through automated manufacturing.
