Back Condenser Electret Microphone Capsule

The ECM-B1465UL-45 is engineered with a unidirectional design, expertly honing in on the desired audio source while effectively reducing ambient noise. This makes it an exceptional choice for professionals in various fields, including recording, broadcasting, and conferencing. Its focused sound capture enhances clarity, ensuring that every word and note is captured with precision, making it the go-to microphone capsule for critical audio applications.

Send Inquiry

Product Introduction

The Back Condenser Electret Microphone Capsule is meticulously designed with a unidirectional focus, perfect for those who prioritize audio clarity. By isolating sound from a single direction, it effectively minimizes ambient noise, making it an essential tool for audio professionals. This microphone ensures that the primary sound source is captured with exceptional definition and detail, elevating the overall recording quality. Whether in a busy studio or during live performances, this capsule delivers precise sound capture, meeting the demands of professional-grade audio applications.

Features

Compact Yet Robust: At just 14 x 6mm, this capsule fits effortlessly into tight spaces while ensuring durability and reliable performance. Consider: Check device specifications for compatibility before installation.
High SPL Capability: With a maximum sound pressure level of 110dB, the ECM-B1465UL-45 provides clear, distortion-free audio even in loud environments. Reminder: Avoid extended exposure to maximum SPL levels to prevent potential damage.
Crystal-Clear Output: Featuring a 60dB signal-to-noise ratio, it minimizes interference for pristine audio quality in professional applications. Advice: Regularly inspect connections and settings to ensure optimal output quality.
Optimal Placement: For best results, ensure proper alignment with the audio source.
Environment Consideration: Ideal for both studio and live settings, ensuring versatility across applications.
Using these alternative headings allows you to highlight not just the features but also the practical advantages and applications of the microphone capsule, providing a more engaging and informative overview for potential users.

Applications

Microphone Capsule for Vocal Microphone

Microphone Capsule for Broadcast Microphone

specifications

Name	Parameter
Sensitivity	-45±3dB
Output impedance	0.68kΩ
Directivity	Uni-directional

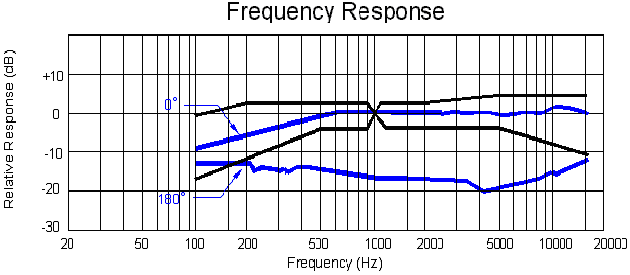

Frequency range	100-16KHz
Maximum SPL	110dB
S/N Ratio	60dB

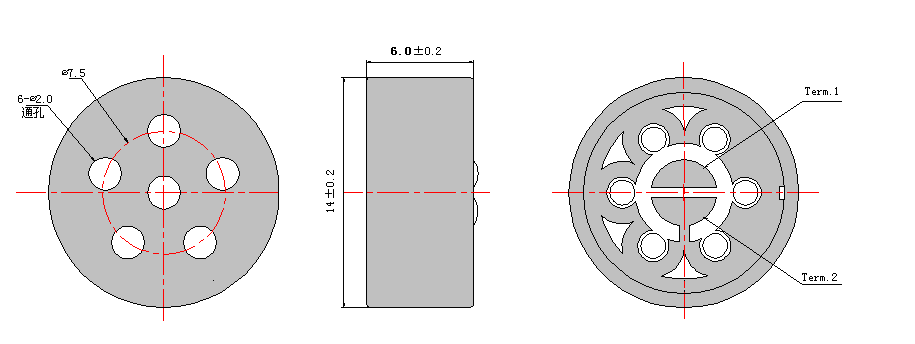

Dimensions	14 x 6mm
