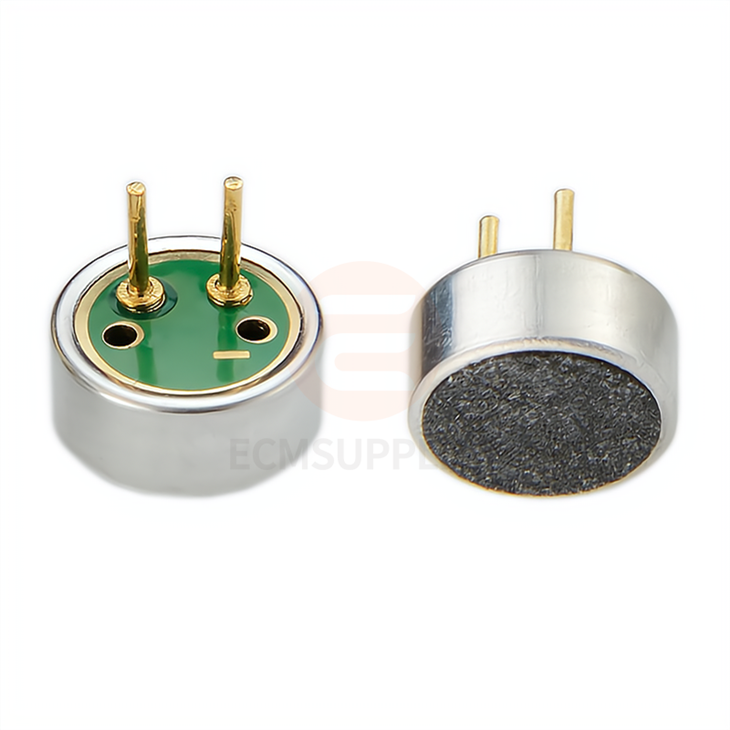

6027 Single Directional Electret Microphone with Pin

Engineered with a unidirectional pickup pattern, this 6.0 × 2.7mm electret microphone effectively isolates the main sound source while rejecting ambient noise. With a sensitivity of -47±2dB and a frequency response of 60Hz–16kHz, it captures detailed, natural sound suitable for vocal and instrument applications. Designed for precision in compact devices, it's perfect for integration into high-performance audio systems where space is limited but quality can't be compromised.



• High sensitivity: -47±2dB ensures optimal sound capture.
• Unidirectional: Cardioid pickup pattern designed for targeted audio capture.
• Extensive Frequency Spectrum: 60-16000Hz for diverse audio functionalities.
• Efficient Layout: Compact dimensions of 6.0 x 2.7mm ideal for space-constrained applications.

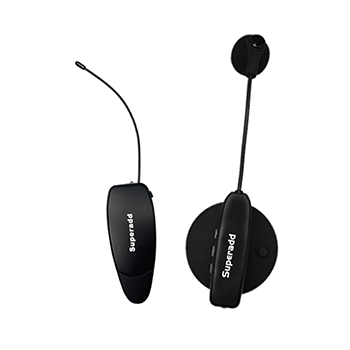

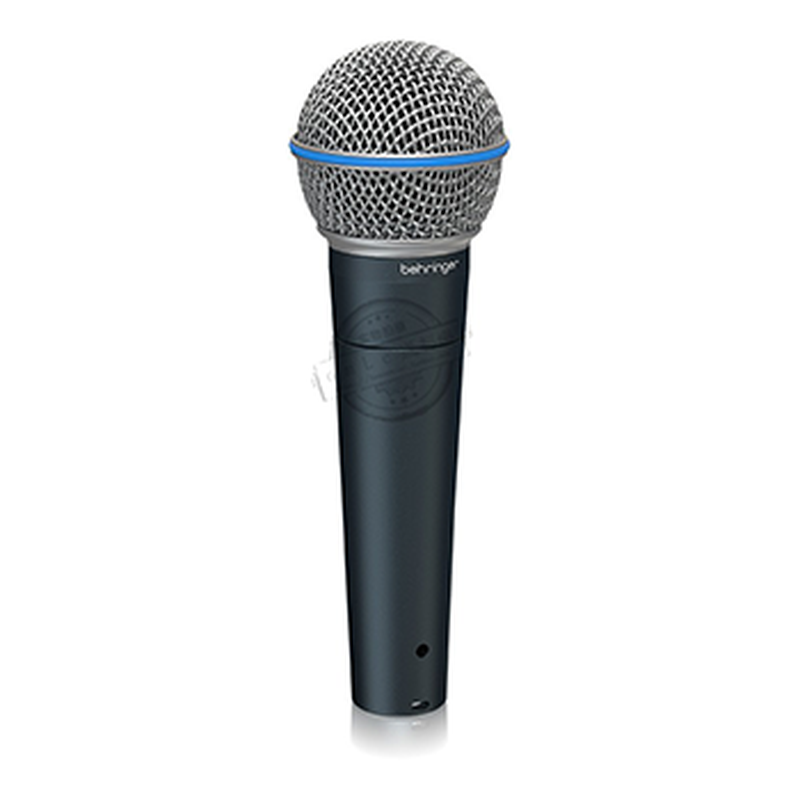

Focused Vocal Pickup for Live Microphones Designed for use in handheld or bodypack mics, this unidirectional capsule excels at isolating vocal signals in noisy environments. Whether in a concert or public speaking setting, it ensures the performer's voice remains clear and free from surrounding interference - delivering consistent, high-quality sound on stage.	Precision Capture for Instrument Microphones Perfect for use in instrument microphones, this capsule captures the nuances of guitars, drums, and acoustic instruments with excellent clarity. Its focused polar pattern helps reduce bleed from nearby sources, making it ideal for close-miking setups in studio or live performance environments where accuracy matters.





Name	Parameter
Model	ECM-B6027UP-47
Sensitivity	-47±2dB

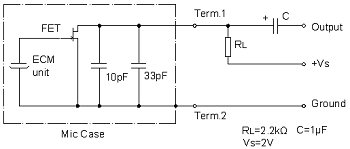

Output impedance	680Ω
Directivity	uni

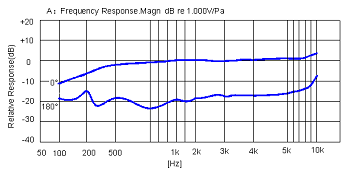

Frequency range	60-16000HZ
Maximum SPL	100dB
S/N Ratio	52dB

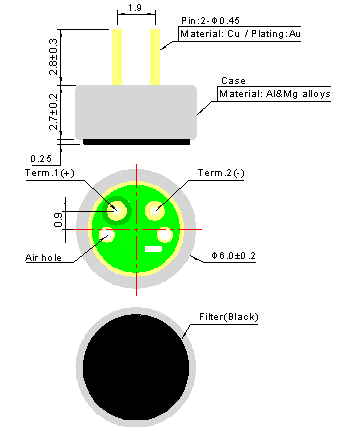

Dimensions	6.0*2.7mm





What sets us apart is our advanced automated manufacturing that ensures every microphone capsule performs consistently across batches. Unlike manual assembly, which can vary in quality, our automated processes guarantee uniform sensitivity, frequency response, and directional accuracy. This level of consistency is crucial for manufacturers building reliable, high-performance audio devices - from live sound equipment to compact recording tools.
