Uni-Directional Condenser Electret Microphone Components

Engineered for critical audio applications, this microphone capsule offers unmatched clarity and focus. With its high sensitivity and precision uni-directional pattern, it isolates the target sound source while minimizing ambient noise. Perfect for demanding environments like live broadcasting, streaming, or studio recording, it delivers pristine, clear audio that cuts through the chaos, ensuring every vocal nuance is captured with detail and accuracy. Built to withstand the rigors of dynamic settings, it guarantees reliability in every use.



• Sensitivity: -46±3dB for optimal audio clarity.
• Output Impedance: 680Ω for efficient performance.
• Directivity: Uni-directional, minimizing background noise.
• Frequency Range: 100-12KHz for clear sound capture.
• Maximum SPL: 110dB, handling loud sounds effectively.
• Compact Size: 16 x 6mm for easy integration into various devices.



Precision Vocal Capture for Live Performances Engineered for the stage, this microphone capsule isolates your voice in noisy environments, ensuring clear, vibrant vocals that stand out even in dynamic performances.	Broadcast-Grade Clarity for Professionals Designed for broadcast professionals, this microphone capsule captures your voice with crystal-clear precision, making it ideal for radio, podcasts, and live broadcasts where clarity is key.





Name	Parameter
Model	ECM-B1660UL46-319
Sensitivity	-46±3dB
Output impedance	680Ω
Directivity	Uni-directional

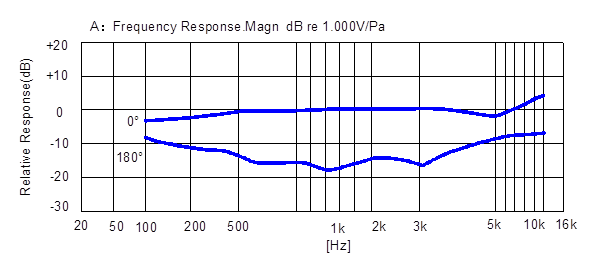

Frequency range	100-12KHz
Maximum SPL	110dB
S/N Ratio	60dB

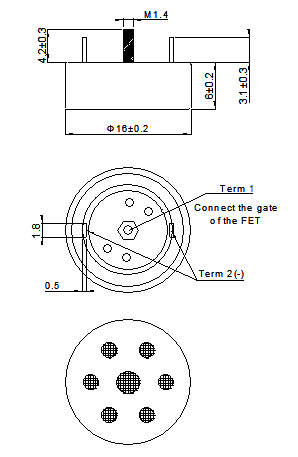

Dimensions	16 x 6mm





We focus on one thing-consistency. Through advanced automated production, every microphone component we deliver maintains the same high standard of performance. This means stable sound quality, precise directionality, and low noise-every time. For professionals who can't afford variations, we make reliability the rule, not the exception.
