1668 Electret Condenser Microphone

Designed for critical sound capture, the 1668 Electret Condenser Microphone offers a sensitivity of -46±2dB, ensuring it picks up detailed vocal nuances. Its unidirectional pattern reduces ambient noise, enhancing clarity in focused recording environments. With a frequency range of 100–16000Hz and a signal-to-noise ratio of 68dB, this microphone capsule provides a low-noise floor ideal for studio and on-air use. The 16 × 6.8mm dimension makes it adaptable for larger housings while maintaining acoustic balance. Whether integrated into professional vocal microphones or broadcast-grade systems, it consistently delivers high-fidelity audio.



• -46±2dB of sensitivity enables accurate recording of sound as it is.
• Full musical performance calls for a broad frequency range ranging from 100Hz to 16000Hz.
• The dimensions have to be 16x6.8mm if one wants simple interaction with various items.
• Less background noise and improved clarity follow from a S/N ratio of 68dB or above.



Voice Studio Recording Element This capsule is ideal for high-end vocal microphone applications, capturing warm, accurate tones in music recording, podcasting, and voice-over projects. Its cardioid pattern helps isolate the speaker's voice, suppressing room reflections and background sound.	Live Broadcast Microphone Capsule Suited for professional broadcasting setups, this microphone capsule ensures consistent voice pickup under varying studio conditions. Its extended frequency response and high SNR support articulate speech delivery on radio, streaming, or televised presentations.



Name	Parameter
Model	ECM-B1668UL46-320
Sensitivity	-46±2dB
Output impedance	680Ω
Directivity	uni

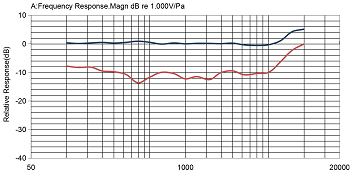

Frequency range	100-16000HZ
Maximum SPL	110dB
S/N Ratio	68dB

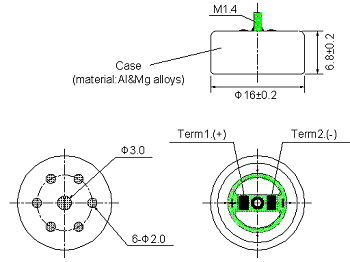

Dimensions	16*6.8mm





The 1668 Electret Condenser Microphone stands out for its exceptionally low noise floor, enabling clean audio capture even in quiet environments. It's produced through automated manufacturing lines with strict quality control, ensuring consistent performance. For engineers, technicians, or brands that require stable and precise voice recording components, this capsule delivers reliability, acoustic precision, and longevity.
