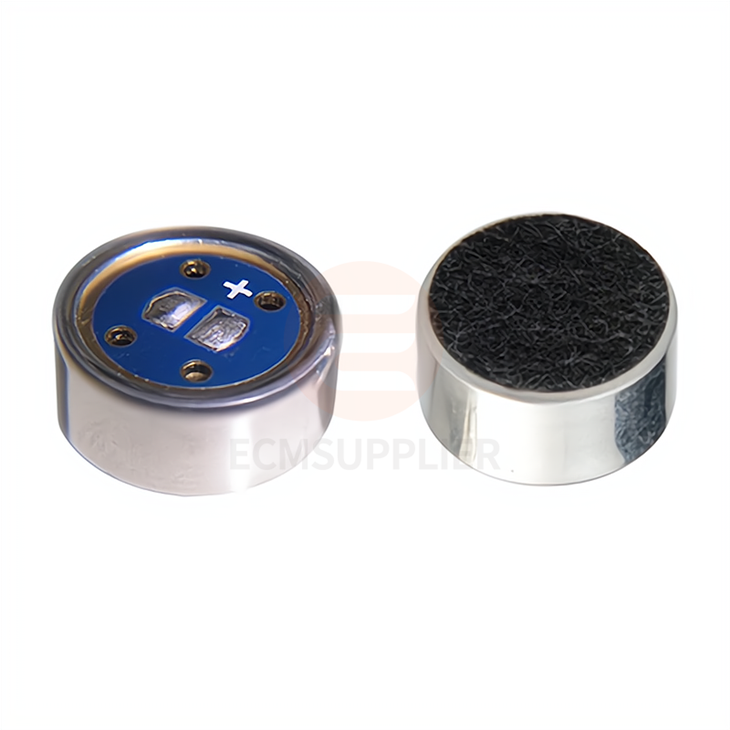

9750 Bidirectional Microphone Element

The 9750 bidirectional microphone element is engineered to provide precise audio capture with its -47±2dB sensitivity and bidirectional directivity, making it an ideal choice for situations requiring clear sound from both front and rear sources, such as interviews or dual-source recording setups.





• Bidirectional Directivity: Captures sound from both front and rear, ideal for interviews and dual-source recording.

• Balanced Sensitivity: -47±2dB for capturing fine audio details.

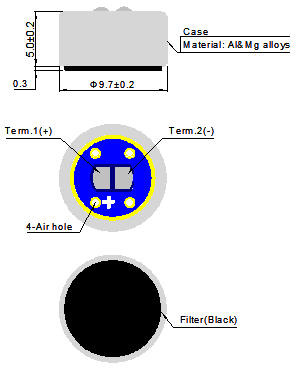

• Compact Design: 9.7 × 5.0mm dimensions, easy to integrate into compact devices.

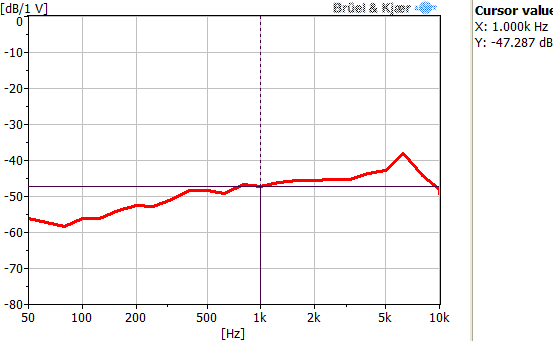

• Wide Frequency Range: 50-10000Hz ensures accurate sound reproduction across a broad spectrum.

• Handles High SPL: Can manage up to 110dB, suitable for environments with varying sound levels.

• Good Signal-to-Noise Ratio: 55dB ensures clear audio with minimal background noise.





Name	Parameter
Sensitivity	-47±2dB
Output impedance	680Ω
Directivity	bidirectional
Frequency range	50-10000Hz
Maximum SPL	110dB
S/N Ratio	55dB
Dimensions	9.7*5.0mm





With years of experience in manufacturing 9750 bidirectional microphone element, we specialize in providing high-quality, reliable audio components. We understand the industry's needs and offer the best solutions tailored to your requirements.
