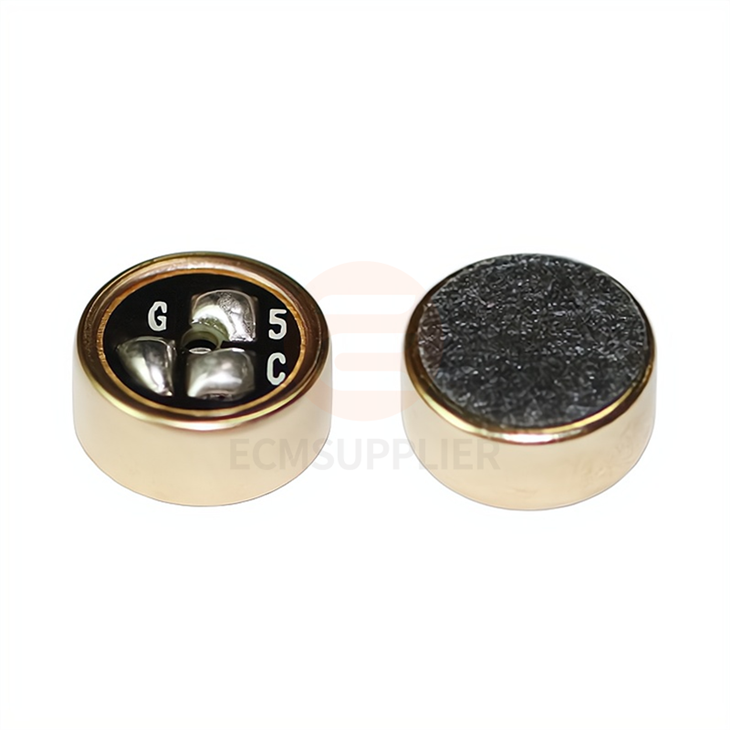

6026 Electret Microphone

This electret microphone capsule features a compact 6.0 × 2.6mm housing while delivering clear, balanced sound from both front and rear. Its bidirectional pickup pattern ensures optimal voice capture in face-to-face or shared mic scenarios. With a sensitivity of -52±3dB, a wide frequency range of 50Hz–20kHz, and a max SPL of 120dB, it is ideal for communication devices requiring consistent clarity in noisy environments. Whether in aviation or professional headsets, it provides low-noise performance and exceptional reliability.



• High Sensitivity: -52±3dB for detailed sound capture.
• Bidirectional: Designed for capturing sound from both front and rear.
• Wide Frequency Range: 50-20000Hz suitable for various audio applications.

• High Maximum SPL: 120dB ensures handling of loud sound sources.

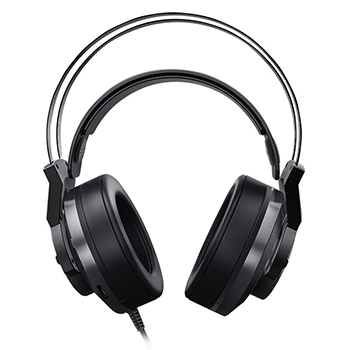

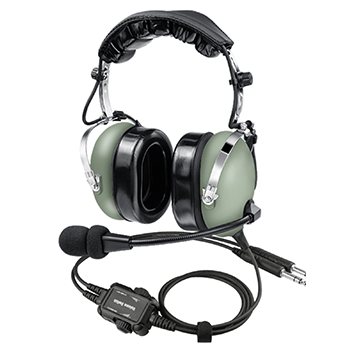

Compact Dual-Side Pickup for Cockpit Communication Designed for aviation headsets, this microphone capsule captures pilot and co-pilot voices with equal clarity. Its bidirectional design minimizes noise from aircraft systems while ensuring balanced communication, making it ideal for tightly integrated intercom systems where every word matters.	Balanced Voice Pickup for Slim Profile Headsets In lightweight headsets used for customer service or collaborative workspaces, this capsule offers clear, bidirectional voice pickup while reducing ambient interference. Its slim design enables sleek headset integration without sacrificing audio quality, perfect for modern office and customer engagement tools.





Name	Parameter
Model	ECM-B6026NL52-454
Sensitivity	-52±3dB
Output impedance	550±30%Ω
Directivity	bid

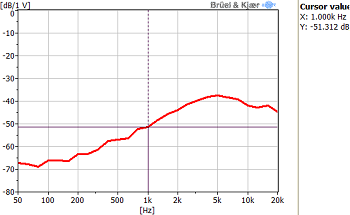

Frequency range	50-20000HZ
Maximum SPL	120dB
S/N Ratio	58 dB

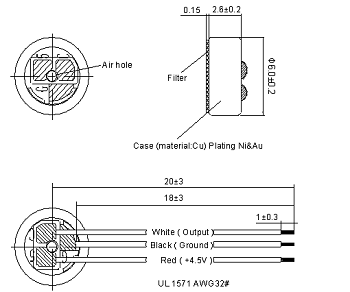

Dimensions	6.0*2.6mm





We specialize in compact, bidirectional microphone components tailored for space-constrained, performance-critical applications. Our 6mm series microphones are manufactured with precise diaphragm tuning and strict quality control to ensure stable output, even under high SPL or variable conditions. This attention to miniaturized performance makes our capsules especially suitable for modern communication headsets that demand both clarity and durability without compromising size.
