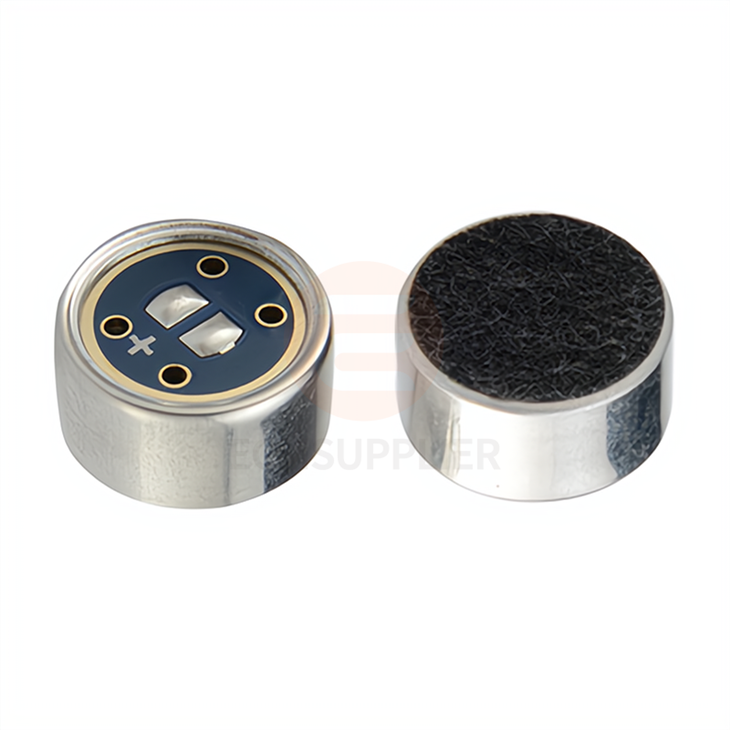

9750 Cardioid Electret Microphone Cartridge

The 9750 Cardioid Electret Microphone Cartridge offers exceptional performance with a sensitivity of -38dB, making it ideal for precise audio capturing in various environments. Its frequency range of 100-16000Hz ensures comprehensive sound reproduction, while the 110dB maximum SPL supports high-volume sound sources without distortion. With a compact design of 9.7 x 5mm, the ECM-770 is versatile for integration into different audio devices, providing clear and focused sound output./p>







• Unidirectional Directivity: Focuses on sound from one direction, reducing ambient noise.
• Balanced Sensitivity: -38±2dB for precise audio capture.

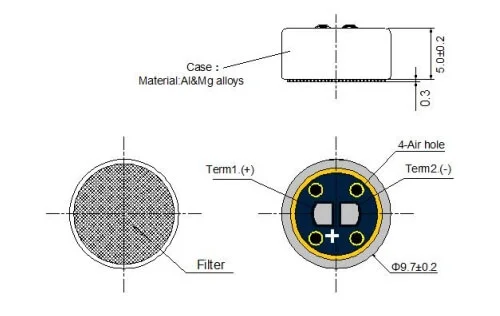

• Compact Dimensions: 9.7 x 5mm, ideal for small devices.

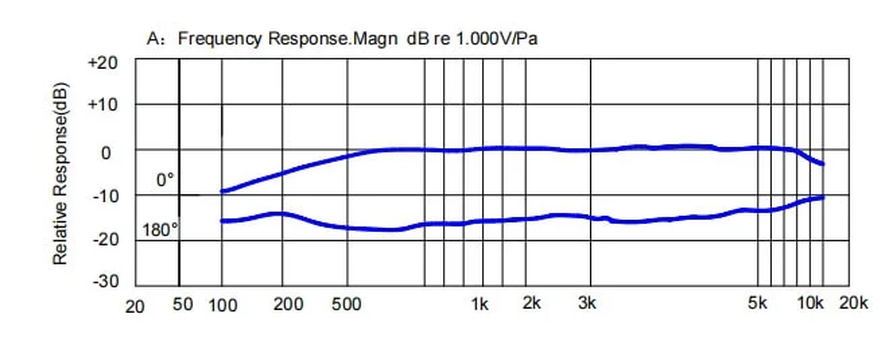

• Wide Frequency Response: 100-16000Hz ensures clear sound reproduction across a broad range.
• High SPL Handling: Can withstand up to 110dB, perfect for various environments.
• Good S/N Ratio: 60dB for clean, low-noise audio output.





Name	Parameter
Sensitivity	-38dB±2

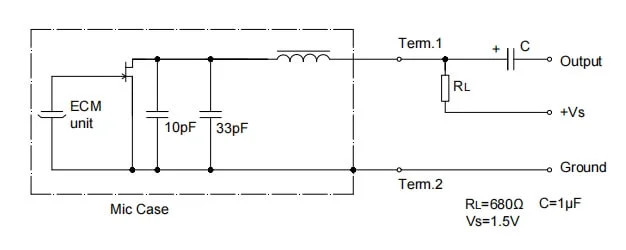

Output impedance	680Ω
Directivity	unidirectional
Frequency range	100-16000Hz
Maximum SPL	110dB
S/N Ratio	60dB
Dimensions	9.7 x 5mm
