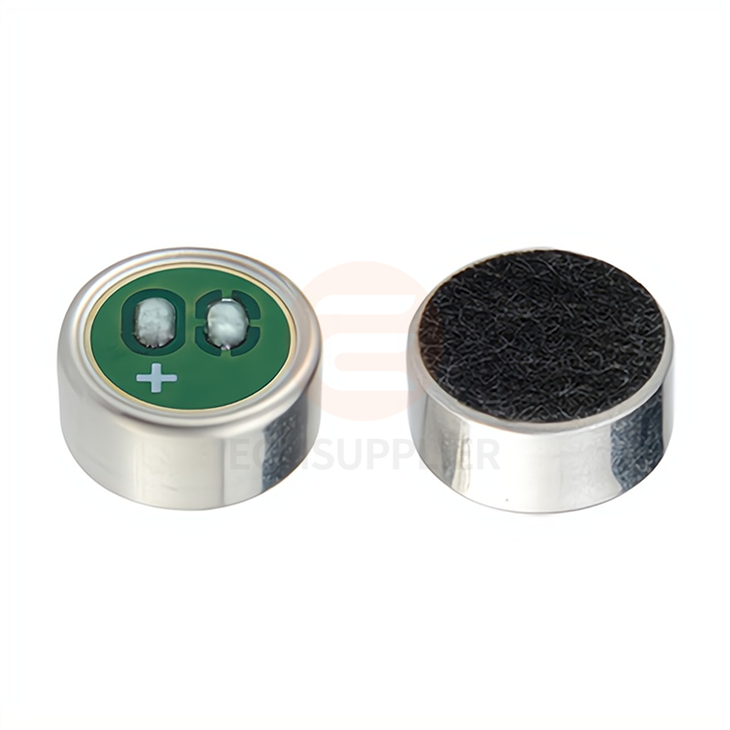

9750 Omnidirectional Microphone Core
Designed to capture clear and natural audio from all directions, the 9750 Omnidirectional Microphone Core features a frequency range of 50Hz to 16kHz and a high S/N ratio of 82dB. Its low output impedance and compact dimensions make it ideal for integration in Bluetooth headset microphones and lavalier microphones, ensuring consistent performance and superior sound quality in communication and recording applications.
Features
- 20Hz to 16000Hz is the frequency range that guarantees thorough reproduction of sounds over a large span.
- The great sensitivity of -42±2dB guarantees exact sound reproduction.
- Directness Captures sound consistently from all directions in omnidirectional fashion.
- Its only 3 x 1.5mm size make it perfect for incorporation into small devices.
Applications
|
|
|
Bluetooth Headset MicrophonesThe 9750 Omnidirectional Microphone Core is perfectly suited for Bluetooth headset microphones, providing clear and balanced audio pickup from every angle. Its compact size and efficient design support wireless communication devices where clarity and durability are essential. |
Lavalier MicrophonesIdeal for lavalier microphone systems, this microphone core offers natural sound capture with minimal background noise, making it a great choice for presentations, interviews, and professional broadcasting. Its omnidirectional pattern allows flexible placement while maintaining high audio fidelity. |
| Name | Parameter |
| Model | ECM-B9750AL26-062 |

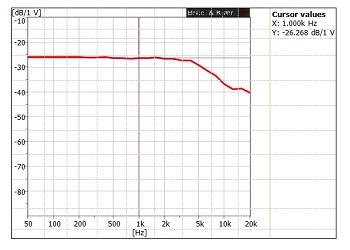

| Sensitivity | -26±3dB |
| Output impedance | 2.2KΩ |
| Directivity |
omni |
| Frequency range | 50-16000HZ |
| Maximum SPL | 110dB |
| S/N Ratio | 82dB |

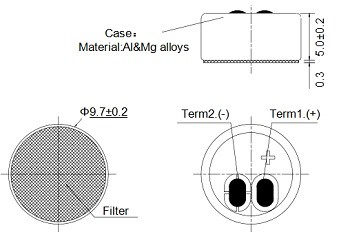

| Dimensions | 9.7*5.0mm |
|
|
|
Why Choose Us
Our factory's advanced machining capabilities and dedication to excellent customer service make the 9750 Omnidirectional Microphone Core a trusted solution. We focus on building long-term partnerships by delivering quality products tailored to diverse client needs, ensuring reliability and smooth collaboration.
