9745 Microphone Core 9745 Ip67 Waterproof

The 9745 Microphone Core 9745 IP67 Waterproof is engineered to meet the demanding requirements of modern sound pickup needs. With its IP67 waterproof rating, this omnidirectional microphone capsule provides consistent and high-quality performance even in harsh environments. Designed with a compact 9.7×4.5mm form factor, -36dB high sensitivity, and a wide 20Hz–16kHz frequency range, it ensures reliable sound reproduction in headsets, lavaliers, and embedded mic applications. Whether you're working outdoors, in high-moisture settings, or in compact device assemblies, this waterproof mic capsule delivers stable and accurate audio every time.



• -36±2dB for exact and clear sound capture.
• IP67 grade guarantees resistance against dust and water.
• Uniform audio pickup from all directions is the omni-directional directivity.
• Excellent S/N Ratio: 65dB minimum background noise level.



Wearable Communication Devices (Headset Microphone) In the world of mission-critical communication, such as security teams or call center environments, the 9745 Microphone Core 9745 IP67 Waterproof is ideal for integration into headset microphones. Its compact size allows seamless PCB mounting, while the omnidirectional pickup pattern ensures accurate voice transmission. With IP67 waterproof protection, the mic capsule resists sweat, dust, and humidity-perfect for active daily use.

Discreet Voice Recording (Lapel Mic Capsule) For media professionals, public speakers, and mobile creators, this waterproof microphone core is the optimal choice for use in lavalier microphones. Its slim form makes it easy to embed in clothing or clip-on mounts, while the high S/N ratio and wide frequency range support clear, natural sound. Whether used in indoor interviews or outdoor filming, the waterproof feature guarantees dependable audio even in unpredictable weather.





Name	Parameter
Model	ECM-F9745AL36-IP67
Sensitivity	-36±2dB

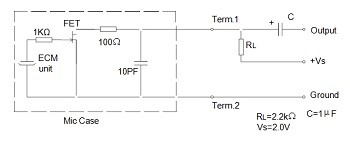

Output impedance	2.2KΩ
Directivity	omni

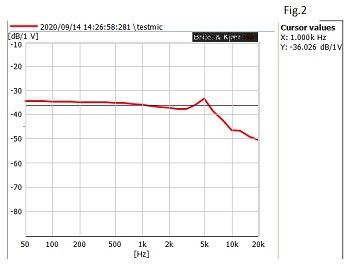

Frequency range	20-16000Hz
Maximum SPL	110dB
S/N Ratio	65dB

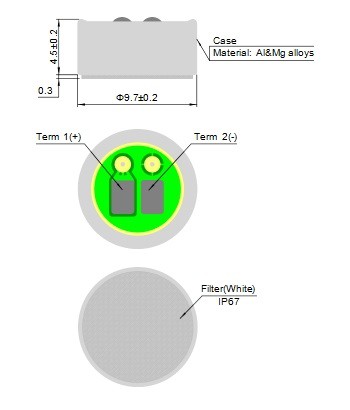

Dimensions	9.7*4.5mm





Reliability under pressure - that's what defines our IP67-rated microphone components. Built for professional audio devices, our production process guarantees waterproof sealing and consistent sensitivity. If your headset or lavalier application demands superior environmental protection with no compromise on clarity, our waterproof mic capsule stands out as the trusted solution.
