This Electret Condenser Microphone Core provides exceptional audio clarity and precision, capturing every detail with remarkable accuracy. Its uni-directional pattern isolates the desired sound, minimizing background noise for superior vocal and instrument capture. Whether in broadcasting, recording studios, or live audio setups, this capsule guarantees reliable performance and high-quality sound in even the most challenging conditions.

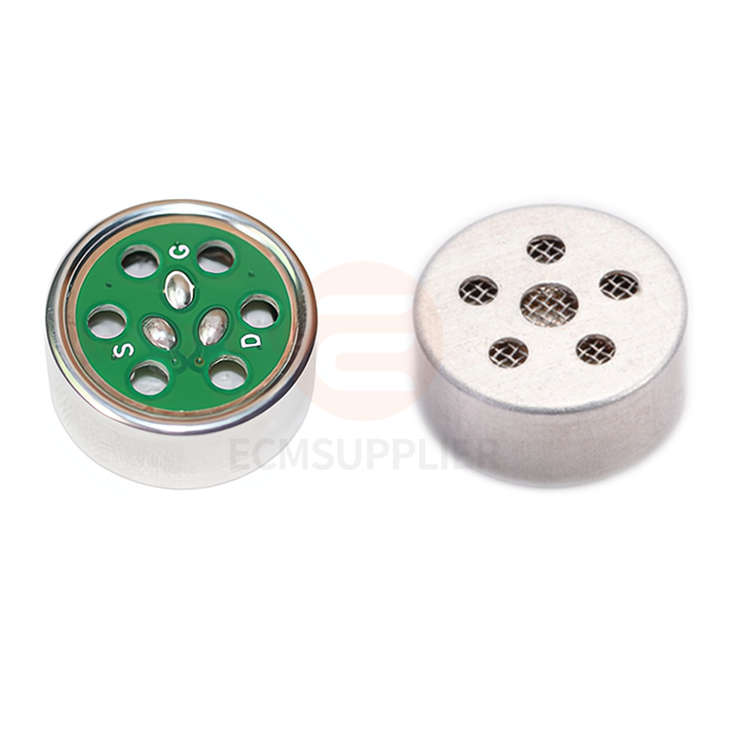

Electret Condenser Microphone Capsule Core
Electret Condenser Microphone Capsule Core offering clear,
accurate sound with excellent noise isolation, ideal for
professional audio setups.
Send Inquiry
Product Introduction
Features
- High Sensitivity Audio Capture: With a sensitivity of -42±2dB, it captures sound details with accuracy, ensuring high-quality audio output.

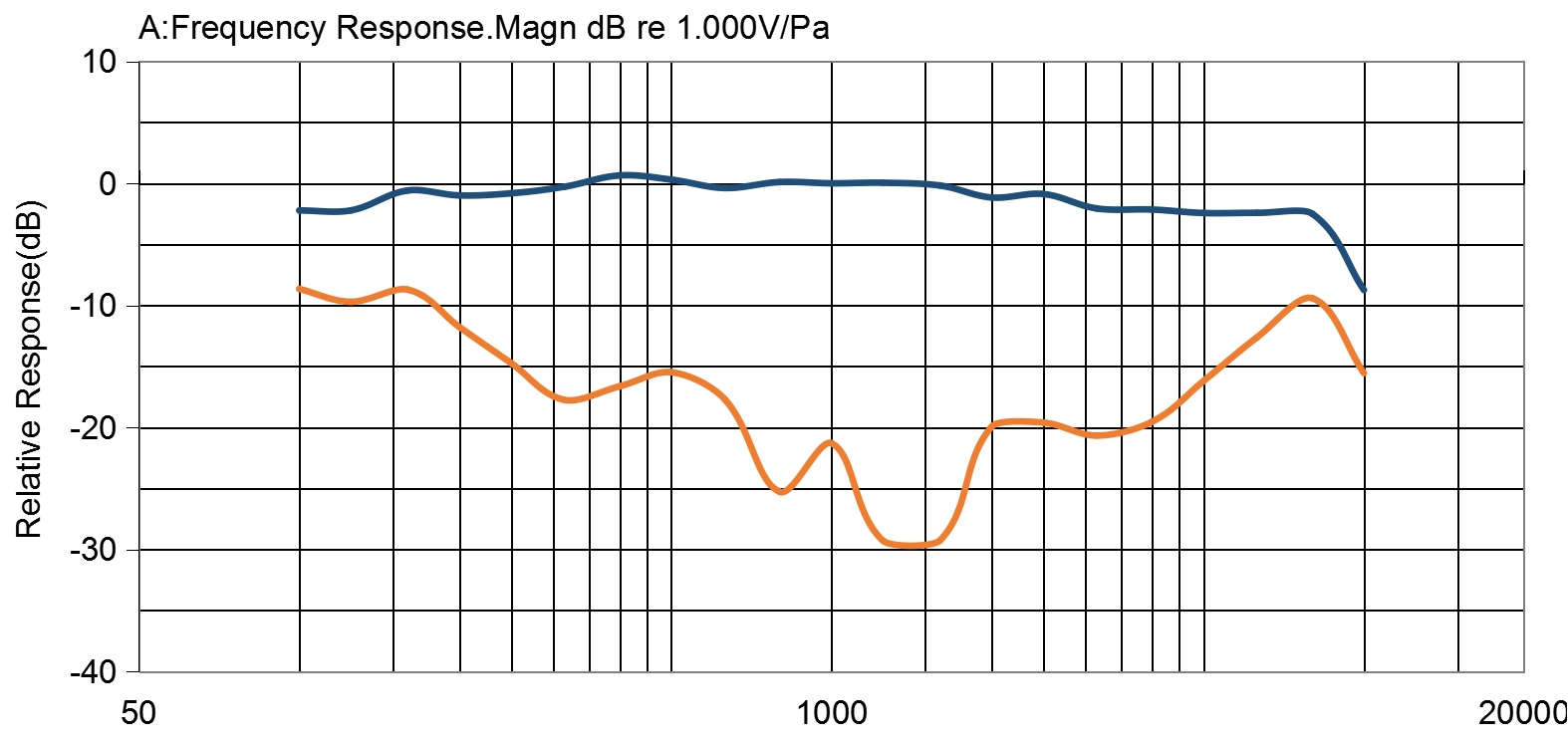

- Wide Frequency Response: The 100Hz to 16kHz frequency range ensures that audio signals are presented with rich layers and clarity.
- Effective Noise Isolation: The uni-directional design effectively isolates background noise, ensuring clean and focused recordings.
- High SPL Performance: With a maximum SPL of 110dB, it delivers stable audio performance in dynamic environments.
- Professional Application: The 1kΩ output impedance easily connects with a variety of audio equipment, meeting the needs of different settings.
- Compact & Efficient: At just 14 x 6.3mm, this capsule integrates easily into a wide range of devices, providing reliable audio performance without taking up extra space.
Applications
|
|
|
|
Stage-Optimized Vocal Capture Built for live performance, this microphone capsule captures vibrant, precise vocals even in the most chaotic, high-volume settings. It ensures that every nuance of your voice is heard, even when competing with powerful soundscapes on stage. |
Broadcast-Quality Audio for Professionals Designed for broadcast settings, this capsule offers exceptional vocal clarity and fidelity. Whether used in radio, podcasts, or live streaming, it keeps your voice sharp and articulate, cutting through noise for crystal-clear sound quality in all broadcasting applications. |
specifications
| Name | Parameter |
| Model | ECM-B1465UL42-231165 |
| Sensitivity |
-42±2dB |
| Output impedance | 1kΩ |
| Directivity | Uni-directional |
| Frequency range | 100-16KHz |
| Maximum SPL | 110dB |
| S/N Ratio |
78dB |
| Dimensions | 14 x 6.3mm |
|
|
|
Why Choose Us
Our Electret Condenser Microphone Capsule Core is engineered for consistency and high-quality audio capture. Built with professionals in mind, it integrates seamlessly into a wide range of audio systems, ensuring clear, precise sound. With advanced manufacturing processes and automated production, we guarantee the reliability and durability needed for professional-grade audio setups.
