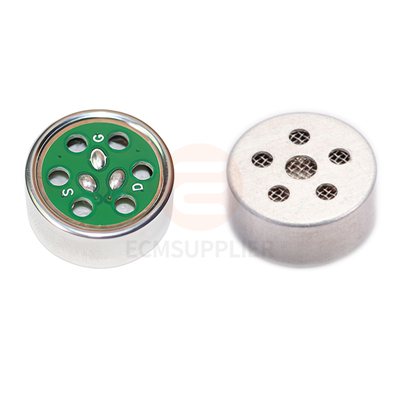

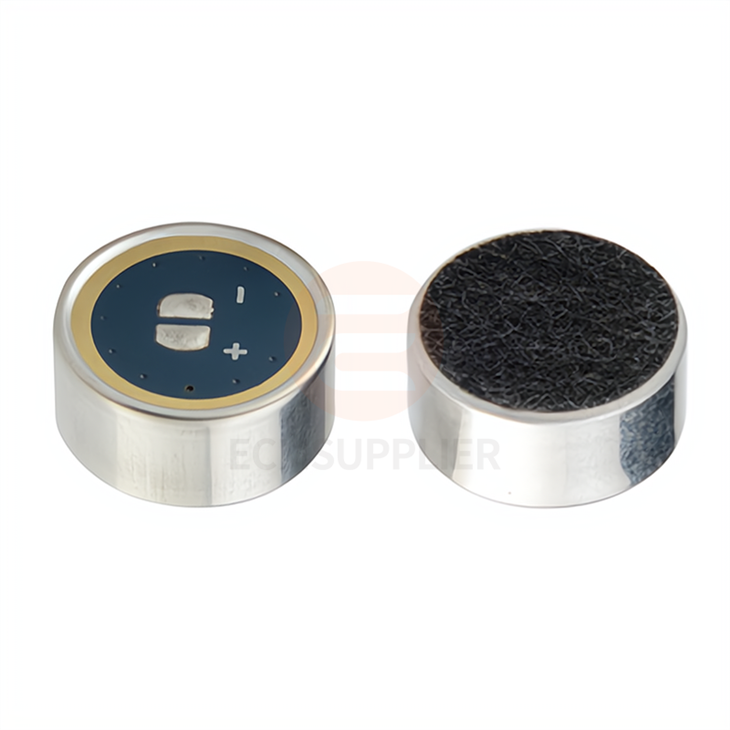

Large Diaphragm Cartridge Core Capsule

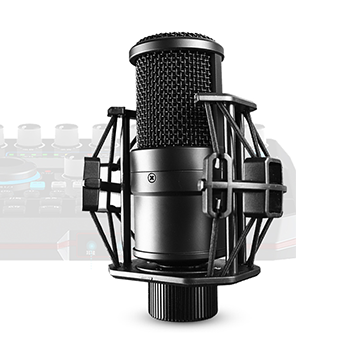

The Large Diaphragm Cartridge Core Capsule is a high-performance large diaphragm cartridge core capsule designed to deliver professional-grade sound quality. With an omnidirectional pickup pattern, it captures sound from all directions, making it highly versatile for different audio recording and amplification setups. Its sensitivity of -30±2dB ensures that even subtle sounds are picked up with great clarity, while the wide frequency range of 50Hz to 20kHz accommodates a variety of audio signals, from deep bass to high frequencies. The capsule's robust construction, along with a signal-to-noise ratio of 72dB, ensures low noise and a clear audio output. Its compact size (14mm x 6.5mm) makes it suitable for a variety of applications including studio microphones, stage performances, conference systems, and more.



• High Sensitivity (-30±2dB): Ensures detailed sound capture, ideal for professional applications.
• Wide Frequency Response (50Hz-20kHz): Captures a broad range of sound frequencies, providing rich, natural audio.
• Omnidirectional Pickup: Picks up sound evenly from all directions, perfect for recording environments with multiple sound sources.
• Durable Build: Designed to withstand long-term use in demanding environments.
• Low Noise Output: High signal-to-noise ratio of 72dB minimizes unwanted background noise.
• Compact Size: 14mm x 6.5mm dimensions make it versatile for various devices and systems.





Name	Parameter
Sensitivity	-30±2dB

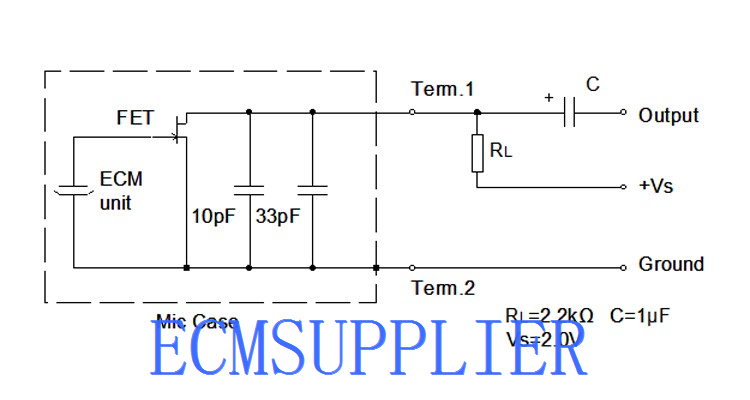

Output impedance	2.2kΩ
Directivity	Omni-Directional

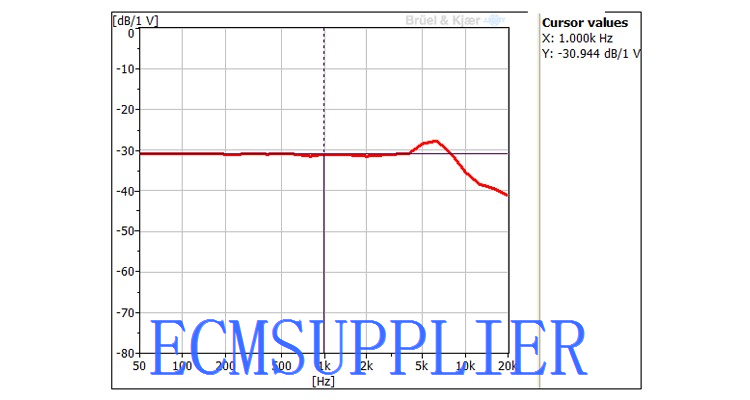

Frequency range	50-20KHz
Maximum SPL	110dB
S/N Ratio	72dB

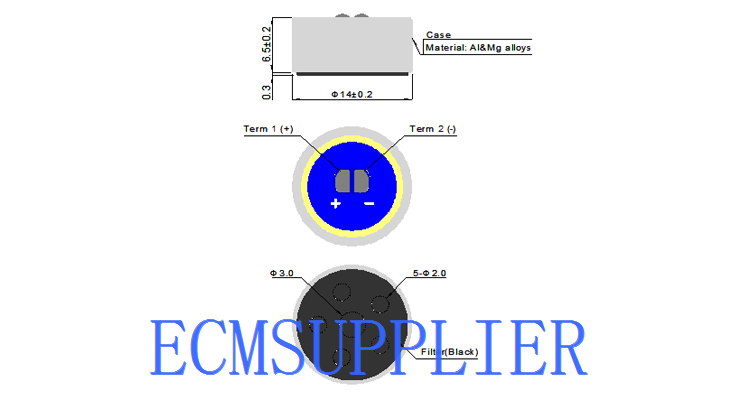

Dimensions	14 x 6.5mm





• Precision Engineering: Our Large Diaphragm Cartridge Core Capsule are crafted with high standards of consistency and performance.
• Automated Production: Ensures uniform quality and low defect rates across batches.
• Extensive Industry Experience: Decades of expertise in microphone component manufacturing.
• Custom Solutions Available: We offer OEM/ODM services to meet specific application requirements.
• Strict Quality Control: Rigorous testing at every stage to ensure product reliability.
