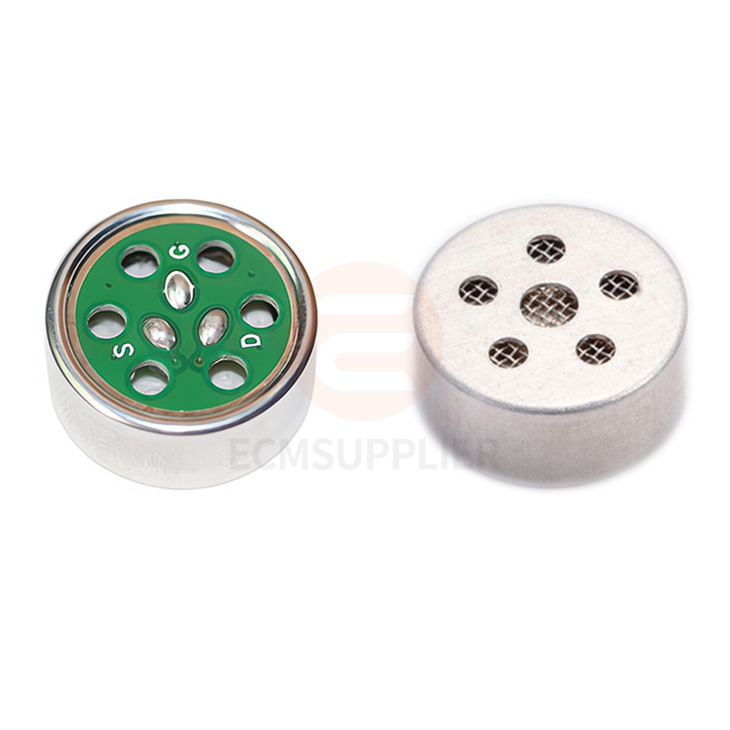

14mm Boom Microphone Capsule

The 14mm Boom Microphone Capsule, with dimensions of 14mm x 6.3mm, is designed for optimal audio performance in boom microphone setups. The device features a sensitivity rating of -38±2dB and an output impedance of 1KΩ, ensuring accurate and high-fidelity audio recording. The capsule exhibits a signal-to-noise ratio (S/N) of 78dB and functions within a frequency range of 100-16,000Hz, facilitating efficient sound capture while reducing ambient noise interference. The unidirectional pickup pattern is engineered to concentrate on sound sources positioned directly in front of the microphone, optimizing its performance in settings where minimizing ambient noise is essential. This microphone capsule achieves a maximum sound pressure level (SPL) of 110dB, making it ideal for various professional audio applications such as broadcasting, film production, and live performances, where precision and clarity in audio capture are critical.



• High Sensitivity: Featuring a specification of -38±2dB, this capsule guarantees accurate and detailed sound capture, making it perfect for professional applications.
• Unidirectional directivity effectively reduces background noise and isolates the main sound source, improving clarity across different environments.
• Extensive Frequency Range: Covers 100 to 16,000Hz, ensuring thorough audio fidelity and encompassing a complete range of sound.
• Output Impedance: Configured to 1KΩ, providing extensive compatibility with various audio devices and circuitry.
• High Signal-to-Noise Ratio: With a measurement of 78dB, it ensures a clear and low-noise audio output, which is essential for both professional and field applications.
• Compact Dimensions: With measurements of 14mm x 6.3mm, this capsule integrates seamlessly into boom microphones and various devices, offering versatility for diverse setups.





Name	Parameter
Sensitivity	-38±2dB
Output impedance	1KΩ
Directivity	Uni-Directional

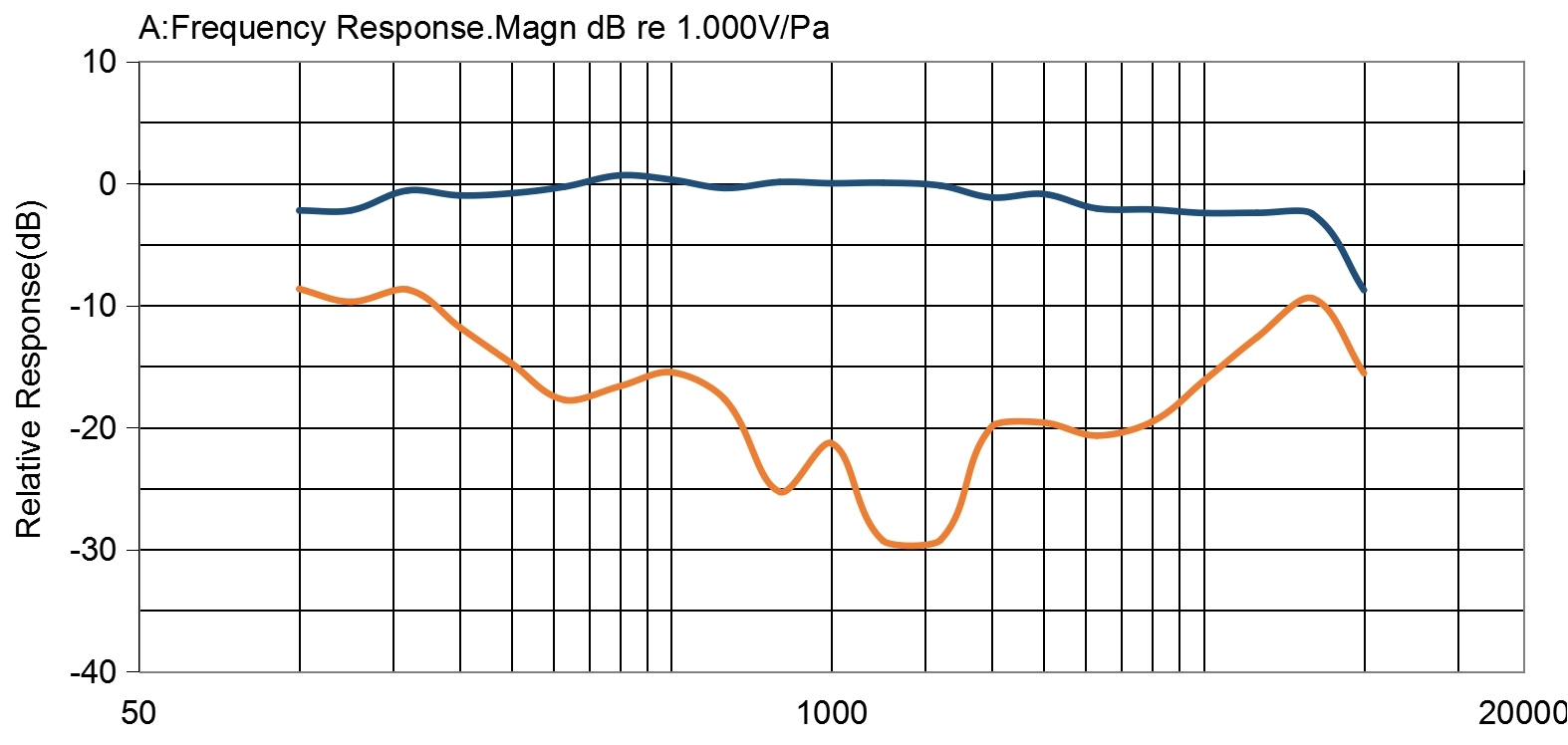

Frequency range	100-16000HZ
Maximum SPL	110 dB
S/N Ratio	78dB

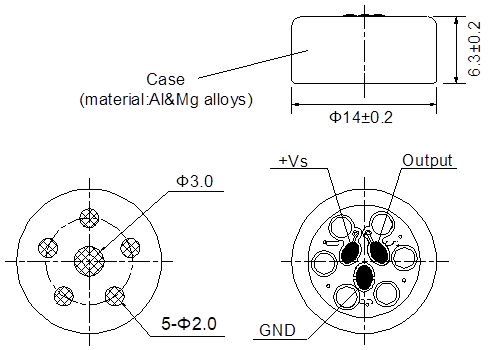

Dimensions	14*6.3(mm)





• Precision Engineering: The 14mm Boom Microphone Capsule incorporates cutting-edge technologies to guarantee exceptional consistency and performance, making it perfectly suited for professional audio applications.
• Outstanding Quality Assurance: Comprehensive evaluation of sensitivity, signal-to-noise ratio, and frequency response ensures peak performance and dependable audio acquisition in challenging conditions.
• Tailored Solutions Offered: We provide OEM/ODM services designed to align with your precise specifications, guaranteeing that the microphone capsule fulfills your exact demands for boom microphone applications.
• Durability and Reliability: Engineered to endure demanding environments, this capsule ensures prolonged durability and dependable performance, crucial for professional and field applications.
• Professional Assistance: Our knowledgeable team provides thorough support and technical advice to guarantee smooth integration and maximum performance of the microphone capsule in your applications.
