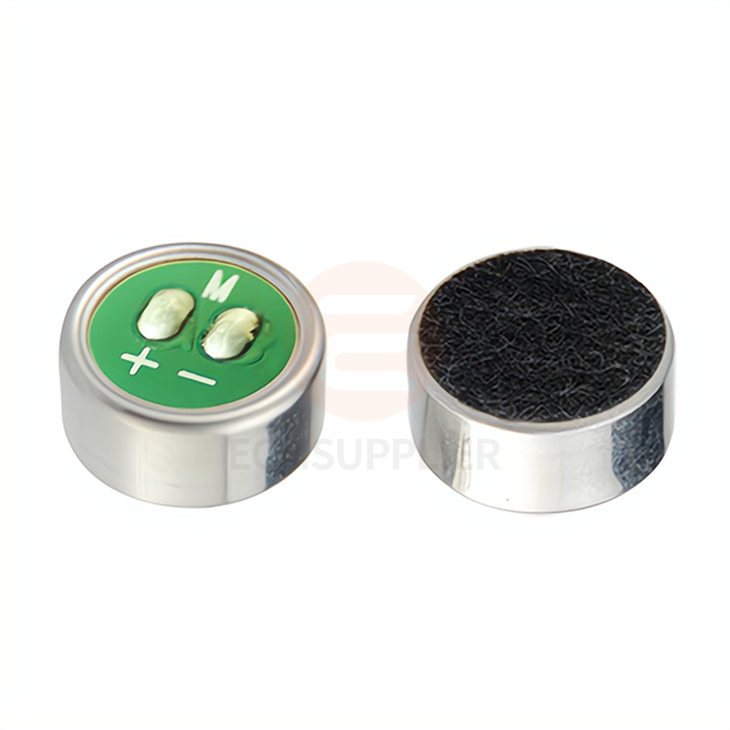

1045 Diaphragm Microphone Capsule

The 1045 Diaphragm Microphone Capsule is designed for applications requiring high sensitivity and low noise in a compact form factor. With a sensitivity of -36±2dB and an impressive S/N ratio of 76dB, this microphone captures clear and accurate audio across a wide frequency range of 50-16000Hz. Its robust design supports a maximum SPL of 120dB, making it suitable for use in environments with high sound pressure levels. The 10x4.5mm size ensures easy integration into various devices, from consumer electronics to professional audio equipment.







• Omnidirectional Directivity: Captures sound from all directions, ideal for ambient recording and voice capture.
• High Sensitivity: With a sensitivity of -36±2dB, it effectively captures subtle audio details.
• Wide Frequency Range: Covers 50-16000Hz, ensuring accurate sound reproduction across a broad spectrum.
• High SPL Handling: Can manage up to 120dB, making it suitable for environments with varying sound levels.
• Low Noise: S/N ratio of 76dB ensures clear audio with minimal background noise.
• Compact Design: Dimensions of 10x4.5mm allow for easy integration into various applications.





Name	Parameter
Sensitivity	-36±2dB
Output impedance	15KΩ
Directivity	omnidirectional
Frequency range	50-16000HZ
Maximum SPL	120 dB
S/N Ratio	76dB
Dimensions	10*4.5mm





we pride ourselves on delivering top-quality 1045 Diaphragm Microphone components designed to meet the stringent demands of modern audio applications. With a focus on precision, consistency, and performance, our products are trusted by professionals worldwide. Our commitment to innovation and customer satisfaction ensures you receive reliable, high-performance solutions tailored to your needs. Choose us for quality you can hear and service you can trust.
