6027 Cylindrical Electret Condenser Mic with Pin

Designed with compact devices in mind, the 6027 Cylindrical Electret Condenser Mic with Pin provides a sensitivity of -30±2dB and a high signal-to-noise ratio of 74dB. With an omni-directional pickup pattern, it captures voice from all directions, making it ideal for consumer electronics such as wired headsets and clip-on microphones. Its cylindrical 6.0 × 2.7mm body with pin output allows seamless integration into slim enclosures, ensuring consistent performance even in challenging acoustic environments.



• Reproducing sound with faultless quality and in its full calls for sensitivity of -30±2dB.

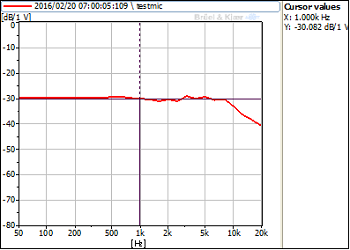

• The overall sound performance spans a wide frequency range, from 50 to 10000 Hz.
• Simple integration between several devices calls for small 6.0×2.7mm dimension.
• Clear sound is made possible even at high pressure levels by maximum SPL of 102 dB.
• Superior S/N ratio of 74dB comes from better clarity and reduced background noise.



Compact Communication Headset This mic capsule is a perfect match for wired or wireless communication headsets, delivering clear speech with minimal interference. Its omnidirectional sensitivity ensures natural voice pickup, even in noisy environments.	Low-Profile Clip-on Recorder Designed for miniature lavalier systems, this microphone ensures users enjoy hands-free voice capture for interviews, public speaking, or video production, all while maintaining an ultra-lightweight and unobtrusive profile.





Name	Parameter
Model	ECM-B6027AP2.8-30RC
Sensitivity	-30±2dB

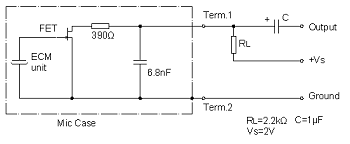

Output impedance	2.2KΩ
Directivity	omni
Frequency range	50-10000HZ
Maximum SPL	102 dB
S/N Ratio	74dB

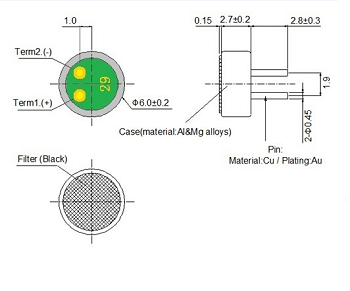

Dimensions	6.0*2.7mm





What makes the 6027 Cylindrical Electret Condenser Mic with Pin stand out is our ability to optimize sourcing, streamline manufacturing, and reduce operational costs-without compromising quality. We maintain strict quality standards while ensuring fast and reliable delivery, helping our partners succeed in competitive markets.
