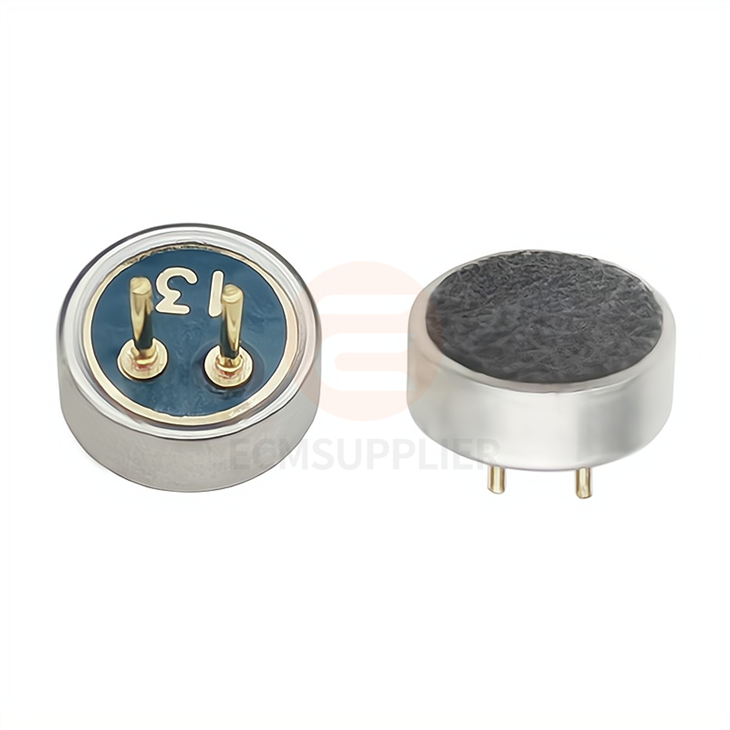

6022 Pin Microphone Head with Pin
Designed for discreet yet high-performance sound applications, the 6022 Pin Microphone Head with Pin features a -49±2dB sensitivity and compact 6.0×2.2mm cylindrical body. Its omnidirectional electret condenser design ensures natural sound collection from every direction-making it a reliable option for acoustic recording, environmental sound sampling, or musical instrument pickups. The low output impedance and wide 20–16,000Hz frequency response allow for clean integration into a variety of professional audio setups.
Features
- High Sensitivity: -49±2dB for precise audio capture.
- Wide Frequency Range: 20-16000Hz for versatile sound performance.
- Compact Dimensions: 6.0×2.2mm for easy integration into diverse devices.
-
Reliable S/N Ratio: 55dB for reduced background noise and clear audio.
Applications
|
|
|
Instrument Pickup ModulePerfect for violin, guitar, or percussion pickups, the 6022 Pin Microphone Head with Pin captures the natural resonance of instruments in studio or live setups with clarity and balance. |
Environmental & Acoustic Sound CaptureIdeal for field recording or environmental sound collection, this mic capsule enables sound designers and engineers to capture detailed, low-noise ambient audio with minimal visual footprint. |
specifications
| Name | Parameter |
| Model | ECM-B6022AP2.8-49 |
| Sensitivity | -49±2dB |
| Output impedance | 2.2KΩ |
| Directivity |
omni |

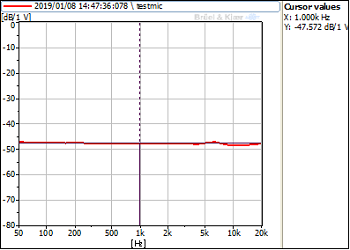

| Frequency range |
20-16000Hz |
| Maximum SPL | 110dB |
| S/N Ratio | 55dB |

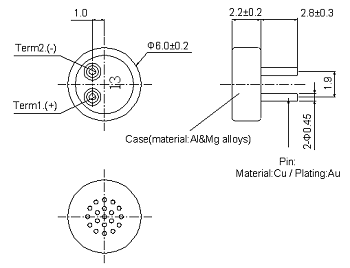

| Dimensions | 6.0*2.2mm |
|
|
|
Why Choose Us
We take pride in our Chinese production facility's ability to craft durable, precision-built omnidirectional microphone capsules like the 6022 Pin Microphone Head with Pin. By combining cost efficiency with strict quality control and responsive customer service, we deliver dependable audio solutions that meet the expectations of both engineers and creators.
