As a trusted supplier of uni - directional microphones, I am often asked about how these remarkable audio devices work. In this blog post, I'll take you on a detailed journey through the inner workings of uni - directional microphones, explaining the science behind their functionality and why they are a popular choice in various audio applications.
Understanding Uni - Directional Microphones
A uni - directional microphone is designed to pick up sound primarily from one direction. This characteristic makes it ideal for situations where you want to focus on a specific sound source while minimizing background noise. There are different types of uni - directional microphones, such as cardioid, super - cardioid, and hyper - cardioid, each with its own unique pickup pattern.
The Basic Components of a Uni - Directional Microphone
Before delving into how a uni - directional microphone works, let's first understand its basic components. A typical uni - directional microphone consists of a diaphragm, a backplate, and an output circuit. The diaphragm is a thin, flexible membrane that vibrates in response to sound waves. The backplate is a rigid surface placed close to the diaphragm, and together they form a capacitor. The output circuit is responsible for converting the changes in capacitance into an electrical signal that can be amplified and recorded.
The Working Principle of a Uni - Directional Microphone
The operation of a uni - directional microphone is based on the principle of capacitance change. When sound waves hit the diaphragm, it vibrates, causing the distance between the diaphragm and the backplate to change. Since the capacitance of a capacitor is inversely proportional to the distance between its plates, the vibration of the diaphragm results in a change in capacitance.
This change in capacitance is then detected by the output circuit. The output circuit typically includes a pre - amplifier that converts the small changes in capacitance into a more usable electrical signal. The electrical signal is proportional to the amplitude and frequency of the sound waves that hit the diaphragm.
How Uni - Directionality is Achieved
The uni - directionality of a microphone is achieved through the design of its acoustic structure. In a cardioid uni - directional microphone, for example, there are two openings: one at the front and one at the back. Sound waves enter through these openings and interact with the diaphragm.
When sound comes from the front, it directly hits the diaphragm, causing it to vibrate. When sound comes from the back, it enters through the rear opening and reaches the back of the diaphragm. The sound waves from the back and the front interfere with each other in a way that reduces the sensitivity of the microphone to sound coming from the rear. This results in a pickup pattern that is most sensitive to sound from the front and less sensitive to sound from the sides and rear.
Super - cardioid and hyper - cardioid microphones have even more focused pickup patterns. They are designed to be more sensitive to sound from the front and less sensitive to sound from the sides and rear compared to cardioid microphones. This is achieved through more complex acoustic designs that further manipulate the way sound waves interact with the diaphragm.
Different Types of Uni - Directional Microphones
There are several types of uni - directional microphones, each with its own advantages and applications.
Condenser Microphones

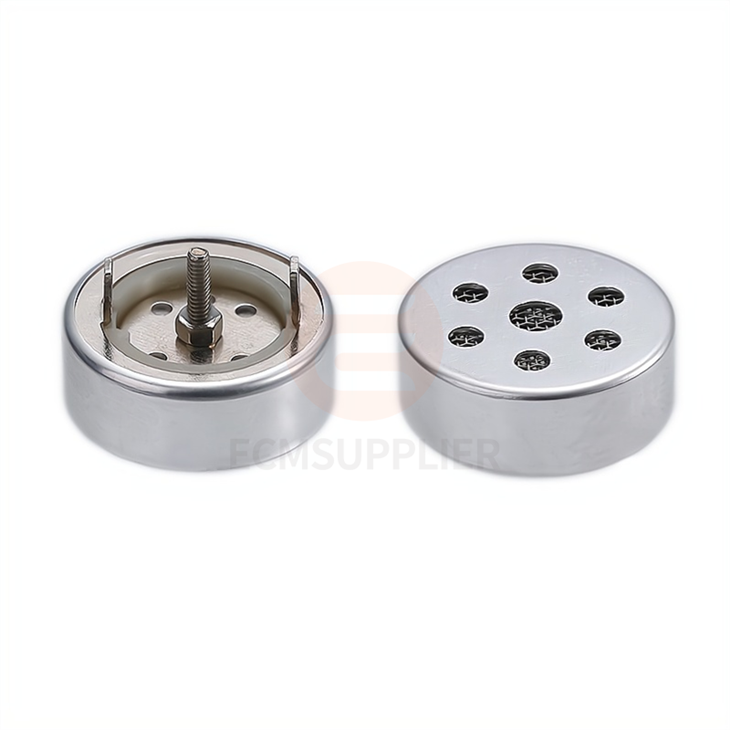

Condenser microphones are known for their high sensitivity and wide frequency response. They are often used in professional audio recording, broadcasting, and live sound applications. Our Uni - Directional Condenser Electret Microphone Components are a great example of high - quality condenser microphones. These microphones use an electret material, which has a permanent electric charge, eliminating the need for an external power source in some cases.
Dynamic Microphones
Dynamic microphones are more rugged and less sensitive than condenser microphones. They are commonly used in live sound applications, such as on stage during concerts. They work based on the principle of electromagnetic induction. When the diaphragm vibrates, it moves a coil of wire within a magnetic field, generating an electrical signal.
Ribbon Microphones
Ribbon microphones are a type of dynamic microphone that uses a thin, corrugated ribbon of metal as the diaphragm. They are known for their warm, natural sound and are often used in recording vocals and instruments in a studio setting.
Applications of Uni - Directional Microphones
Uni - directional microphones have a wide range of applications due to their ability to focus on a specific sound source.
Broadcasting
In broadcasting, uni - directional microphones are used to capture the voices of presenters and interviewees clearly while minimizing background noise. This ensures that the audio quality of the broadcast is high and the message is conveyed effectively.
Live Sound
In live sound applications, such as concerts and theater performances, uni - directional microphones are used to pick up the sound of singers, musicians, and speakers. They help to isolate the sound source and reduce feedback, resulting in a better - sounding performance.
Recording Studios
In recording studios, uni - directional microphones are used to record vocals, instruments, and other audio sources. The ability to focus on a specific sound source allows for more precise recording and better control over the audio quality.
Our Product Offerings
As a supplier of uni - directional microphones, we offer a wide range of high - quality products to meet the needs of different customers. Our 14mm High - Fidelity Unidirectional Mic Capsule is designed for applications that require high - quality audio recording. It offers a wide frequency response and low noise, making it suitable for professional recording studios and broadcasting applications.

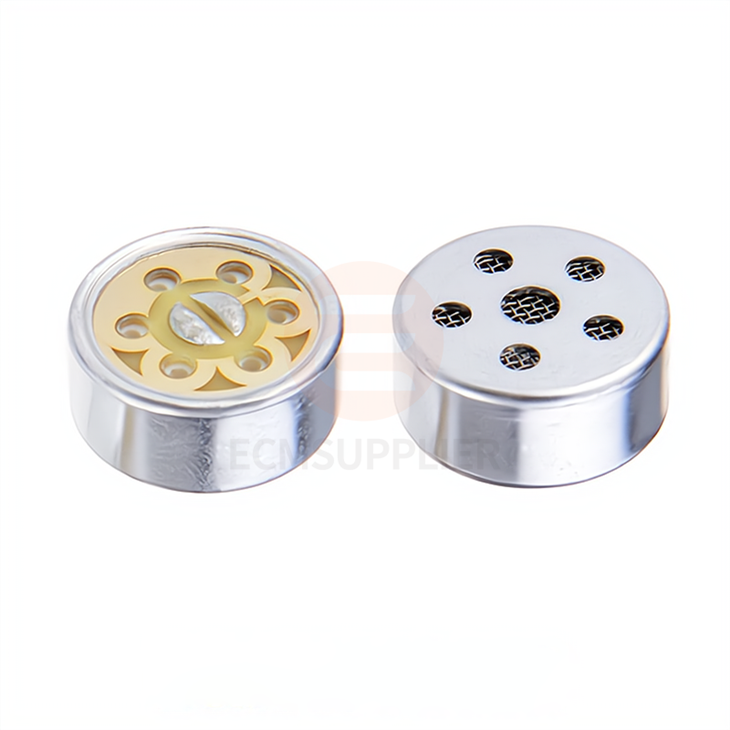

We also have Back Condenser Electret Microphone Capsule, which are known for their excellent performance and reliability. These capsules are designed to provide a stable electrical output and are easy to integrate into different microphone designs.
Conclusion
In conclusion, uni - directional microphones are essential tools in the world of audio. Their ability to focus on a specific sound source while minimizing background noise makes them suitable for a wide range of applications, from broadcasting and live sound to recording studios. By understanding how these microphones work, you can make more informed decisions when choosing the right microphone for your needs.
If you are interested in our uni - directional microphone products or have any questions about their applications, please feel free to contact us for procurement and further discussion. We are committed to providing high - quality products and excellent customer service.
References
- Everest, F. A., & Pohlmann, K. C. (2009). Master Handbook of Acoustics. McGraw - Hill.
- Davis, R. (2016). Audio Engineering: Principles and Practices. Routledge.
