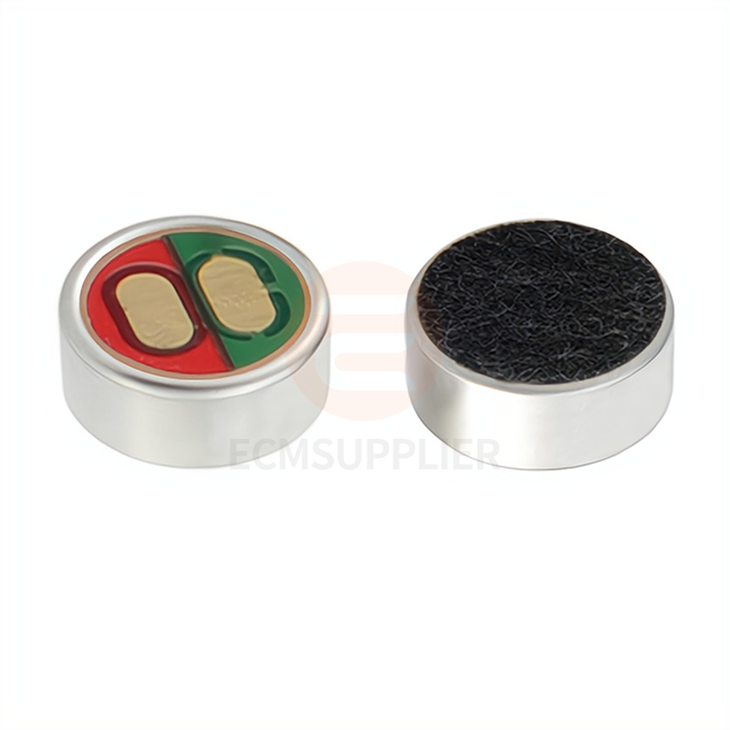

4015 Electret Microphone

4015 Electret Microphone

With a sensitivity of -30±2dB, this microphone capsule delivers exceptional sound capture, accurately detecting even the faintest audio details. It’s perfect for applications such as intercom systems, wireless communication devices, and hands-free voice systems, where clear and reliable audio transmission is crucial.
Send Inquiry
Product Introduction

The 4015 electret microphone is designed for a wide range of professional applications. Its compact size and high sensitivity make it an ideal choice for clear and reliable audio capture in communication systems. Built to meet international standards, it guarantees consistent performance in demanding environments, ensuring you get high-quality audio every time.



Features
  • High Sensitivity: -30±2dB for accurate and detailed sound capture.
  • Wide Frequency Range: 20-16000Hz, suitable for a broad range of audio applications.
  • Compact Design: 4 x 1.5mm dimensions for easy integration into various devices.
  • Good S/N Ratio: 60dB for minimal background noise and high-quality audio output.



Applications

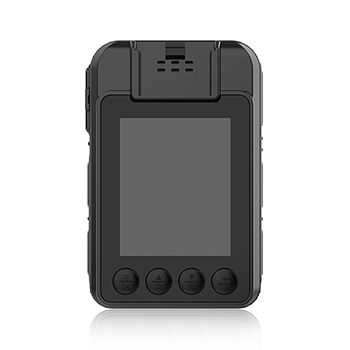

Law enforcement recorder
Electret Mic for Law Enforcement Recorder

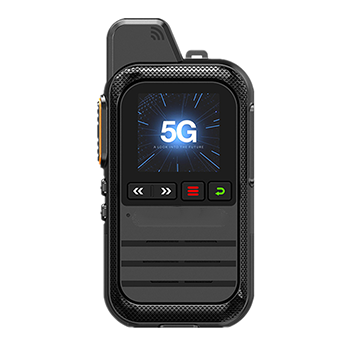

Two-way radio
Electret Mic for Two-way Radio
specifications



Name Parameter
Model ECM-B4015AL-30
Sensitivity -30±2dB
Output impedance 2.2KΩ
Directivity

omni

Frequency range

20-16000Hz

Maximum SPL 110dB
S/N Ratio 60dB
Dimensions 4 x 1.5mm



circuit

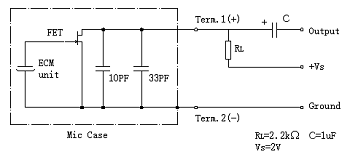

4015 STANDARD TEST CIRCUIT
response

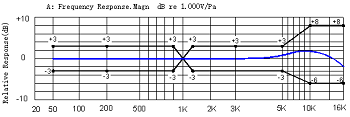

4015TYPICAL FREQUENCY RESPONSE
dimension

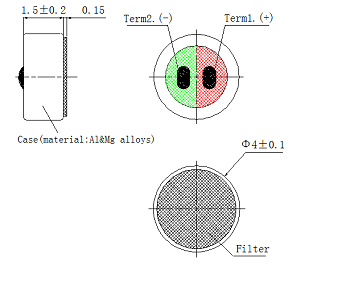

4015APPEARANCE & DIMENSION
