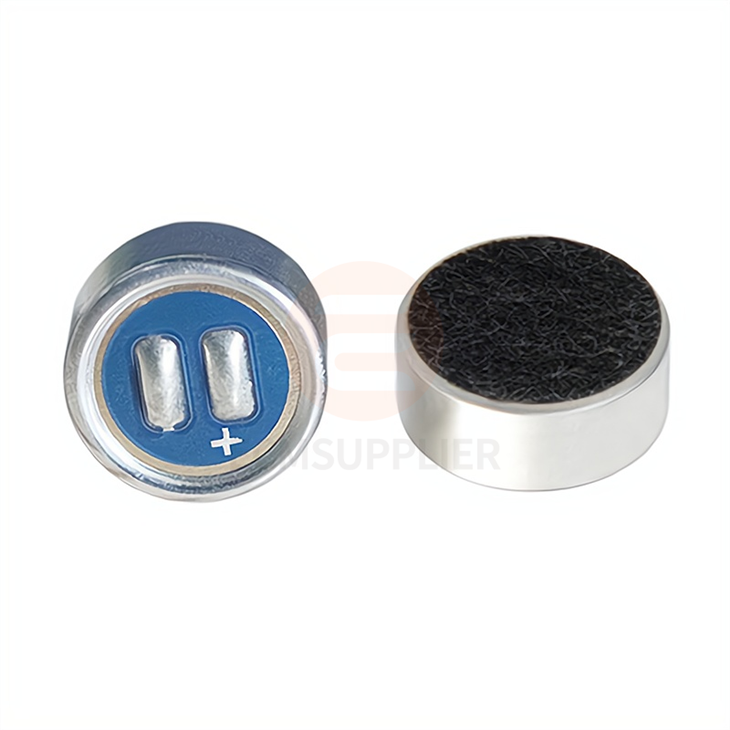

6027 Microphone

The 6027 Microphone is a small microphone capsule designed for applications that demand consistent and high-quality voice pickup in limited spaces. With a wide frequency response of 50–20000Hz and high sensitivity at -38dB, this omnidirectional microphone element is ideal for digital audio devices requiring stable, natural sound reproduction. Its compact 6.0 × 2.7mm design fits seamlessly into modern electronics, delivering clear audio output while maintaining space efficiency.



Whether for recording, measuring, or capturing voice in real time, the 6027 Microphone delivers the performance expected from a professional-grade microphone core. Built with a focus on stability and efficiency, it's the smart solution for audio-intensive compact devices.



• High sensitivity: -38±2dB for precise and all around sound recording.
• Wide response: 50–20000Hz ensures whole audio performance across a wide spectrum.
• Compact size: comes from small form factor (6.0 x 2.7mm) enabling versatile device integration.
• Excellent S/N Ratio: Clean audio and low background noise guaranteed with 62dB.



Noise Level Monitor / SPL Meter In decibel meters or noise monitoring tools, the 6027 Microphone delivers high accuracy thanks to its wide frequency range and omnidirectional pattern. Its high sensitivity and low distortion make it a strong candidate for environments where precise acoustic measurements are essential, such as industrial safety, environmental monitoring, or sound calibration systems.

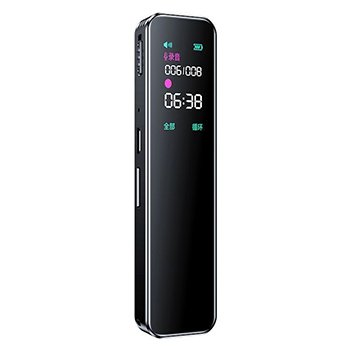

Pocket Voice Logger / Portable Memo Recorder Thanks to its small size and natural sound capture, the 6027 Microphone integrates effortlessly into portable voice recorders. Its excellent S/N ratio ensures clean recordings even in mobile or low-noise environments, making it suitable for interviews, memo logging, and field reporting.





Name	Parameter
Model	ECM-B6027AL38-90
Sensitivity	-38±2dB

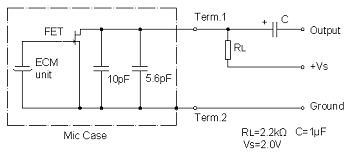

Output impedance	2.2kΩ
Directivity	omni

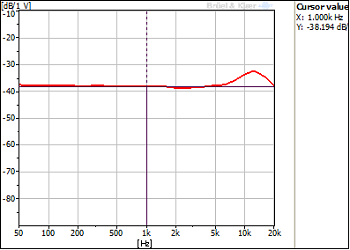

Frequency range	50-20000HZ
Maximum SPL	110dB
S/N Ratio	62dB

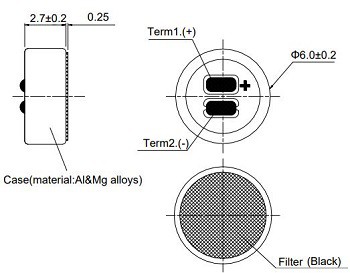

Dimensions	6.0 * 2.7mm





What sets us apart is our customized wiring capabilities. From enamelled wires to shielded cables, and from specific pin lengths to connector types, we tailor the microphone assembly to your exact design requirements. Combined with advanced manufacturing lines and rigorous quality inspection, we ensure the 6027 Microphone you receive is both reliable and production-ready.
