Omni-Directional Electret Microphone Components
The Omni-Directional Electret Microphone Components, offers a robust solution for manufacturers seeking superior sound capture. With its omni-directional design, it ensures even and reliable sound pickup from all angles. Thanks to its wire soldering compatibility, this microphone core integrates effortlessly into a variety of audio applications, making it a go-to choice for precision-driven environments.
Features
- Optimized for Wire Soldering: Enables stable, secure connections for customized assembly.
- High Audio Accuracy: Sensitivity of -38±2dB, delivering precise sound reproduction.
- Omni-Directional Coverage: Captures audio evenly, regardless of source location.
- Broad Frequency Range: Operates from 50Hz to 16KHz, suitable for diverse use cases.
- Space-Efficient Design: Compact 4 × 1.5mm form factor ideal for modern devices.
- Robust Sound Handling: Withstands up to 110dB SPL, supporting loud environments with ease.
Applications
specifications
| Name | Parameter |
| Sensitivity |
-38±2dB |
| Output impedance |
2.2kΩ |
| Directivity | Omnidirectional |

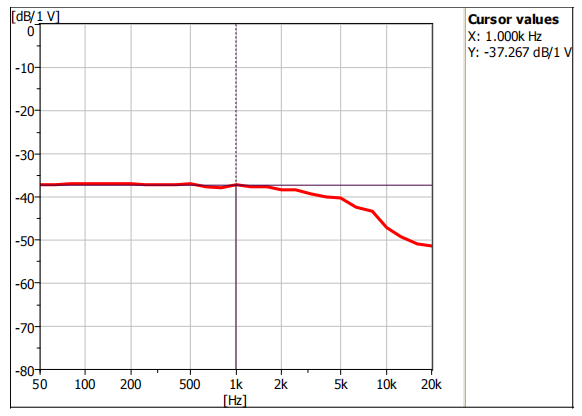

| Frequency range | 50-20KHz |
| Maximum SPL |
110dB |
| S/N Ratio |
65dB |

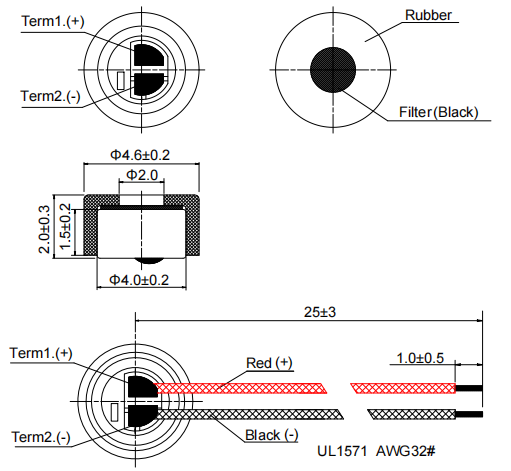

| Dimensions | 4 x 1.5mm |
|
|
|
Why Choose Us
- Expertly Crafted for Flexibility：Its wire soldering compatibility ensures smooth integration, catering to unique design specifications.
- Reliable Audio Output：High sensitivity and a consistent frequency response guarantee clear and accurate sound capture, even in challenging conditions.
- Cutting-Edge Manufacturing Standards：Built in our state-of-the-art facility, each component undergoes rigorous testing to ensure exceptional quality and reliability.
- Tailored for Today's Demands：Compact yet powerful, the Omni-Directional Electret Microphone Components is the perfect fit for applications where size and precision are critical.
