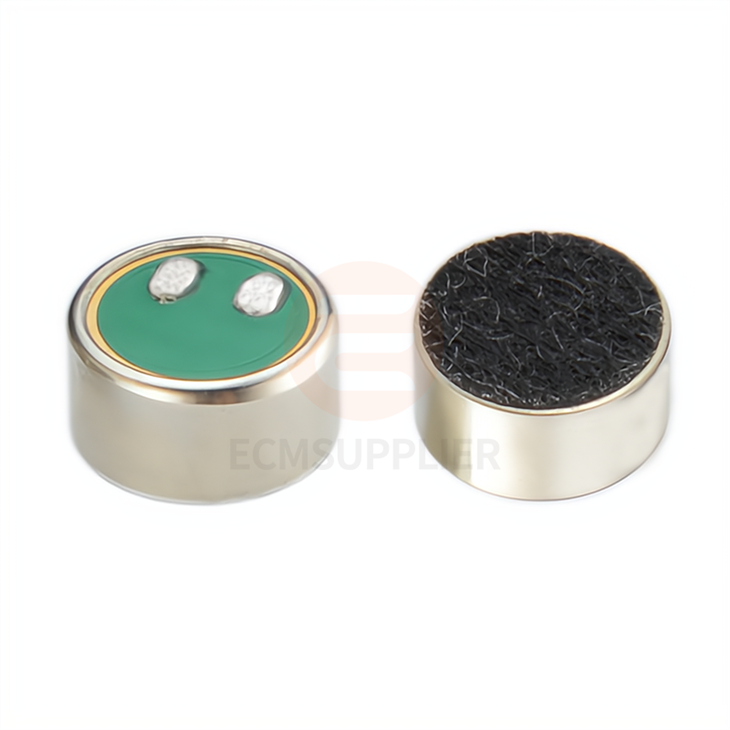

Omni-Directional Electret Condenser Capsule

Thanks to its omni-directional design, the ECM-B5830AL-SD1033-38 captures sound from every angle, providing natural and even audio reproduction. Whether used in voice-based applications or audio recording systems, it excels at delivering clarity and consistency in any environment. The capsule's -38±3dB sensitivity ensures it picks up even the subtlest audio details, while its robust 110dB SPL tolerance guarantees reliable performance in high-volume settings.





• Omni-Directional Sound Capture

The ECM-B5830AL-SD1033-38 is engineered to capture sound from every direction, ensuring a balanced and full-spectrum audio profile. This makes it ideal for capturing ambient sounds and speech in environments where audio sources are not fixed.



• Wide Frequency Range (100Hz to 5KHz)

Designed specifically for capturing the mid-range frequencies, this capsule excels in applications requiring clear voice reproduction or capturing nuanced sound, such as speech, interviews, or communication systems.



• High Sensitivity (-38±3dB)

Even in quiet environments, the ECM-B5830AL-SD1033-38 maintains its precision. Its high sensitivity ensures accurate sound reproduction, making it perfect for low-noise applications like voice recorders or portable audio devices.



• High SPL Tolerance (Up to 110dB)

Whether you're working in a high-pressure sound environment or capturing live audio, this capsule handles sound pressures up to 110dB without distortion, making it ideal for dynamic settings like conferences, live events, or broadcasting.



• Compact and Easy Integration

At only 5.8 × 3mm, this capsule's small size allows for seamless integration into space-constrained audio systems, offering the flexibility to design sleek, portable, and high-quality products.





Name	Parameter
Sensitivity	-38±3dB
Output impedance	2.2kΩ
Directivity	Omnidirectional
Frequency range	100-5KHz
Maximum SPL	110dB
S/N Ratio	58dB

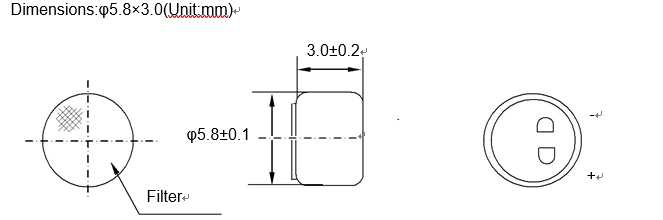

Dimensions	5.8 x 3mm





With decades of expertise in manufacturing high-performance microphone components, we understand what it takes to deliver consistent, reliable sound quality. The ECM-B5830AL-SD1033-38 is the result of this deep industry knowledge, offering precision and durability to ensure long-lasting, high-quality audio performance.



Our commitment to quality means every capsule is tested rigorously to meet the highest standards of performance, ensuring dependable results in a variety of applications. Whether you are designing a professional sound system or creating a consumer-grade audio device, our capsules guarantee clarity, consistency, and versatility.



By choosing us as your partner, you're not just investing in a microphone capsule-you're investing in the future of your product's sound performance. Let us help you achieve the best in audio quality with trusted, cutting-edge technology and unparalleled customer support.
