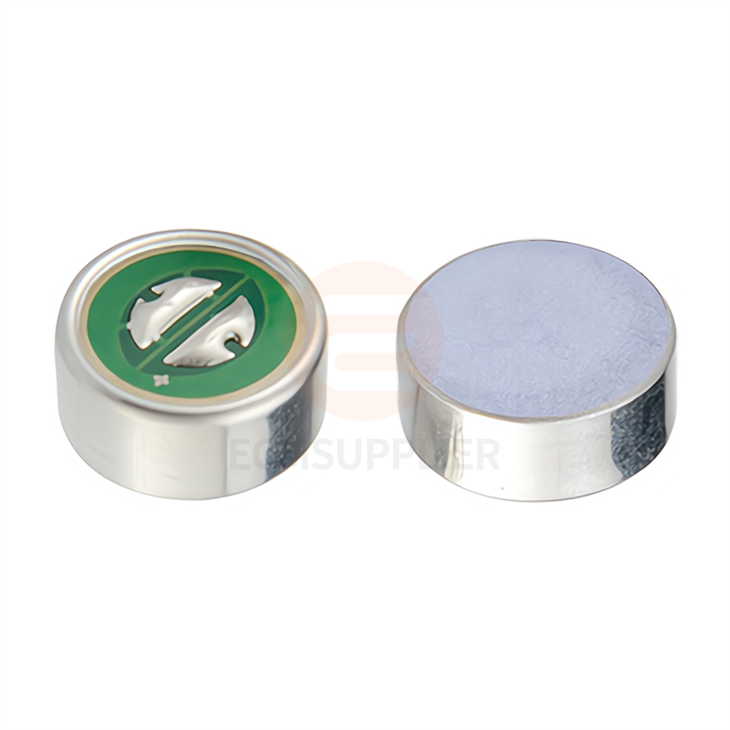

9745 Microphone IP67 Microphone Electret Microphone

The 9745 Microphone IP67 Microphone Electret Microphone is a high-performance audio component designed for environments that demand durability without compromising sound clarity. Featuring a compact 9.7 × 4.5mm omni capsule, this electret microphone element delivers a stable -30dB sensitivity and a wide 20–5000Hz frequency response. With an impressive 74dB signal-to-noise ratio and a rugged IP67 waterproof rating, it ensures consistent voice capture even in challenging weather or outdoor conditions. Whether embedded in a wireless lavalier mic module or a compact headset mic part, the 9745 Microphone IP67 Microphone Electret Microphone brings dependable, high-fidelity audio performance.



• The frequency range extends from 20 to 16,000 Hz, ensuring comprehensive audio reproduction across a broad spectrum.
• -42±2dB guarantees accurate sound acquisition.
• Omni-directional directivity consistently captures audio from every angle.
• This component, measuring just 3 by 1.5mm, is ideal for integration into compact devices.



Compact Outdoor Communication Headset In outdoor headsets used by tour guides, security teams, or sportscasters, the IP67 microphone delivers crystal-clear voice input while withstanding rain, sweat, and dust. The omnidirectional pickup ensures natural voice clarity, even when the mic is positioned off-axis or integrated discreetly.	Broadcast-Ready Clip Mic For mobile journalism or on-stage use, this electret microphone element enables the creation of low-profile clip-on lavalier microphones with high durability. The IP67 sealing ensures the lavalier mic module continues functioning even in wet or dusty reporting environments.





Name	Parameter
Model	ECM-B9745AL30RC-IP67
Sensitivity	-30±2dB

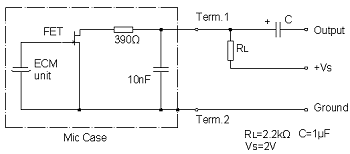

Output impedance	2.2KΩ
Directivity	omni

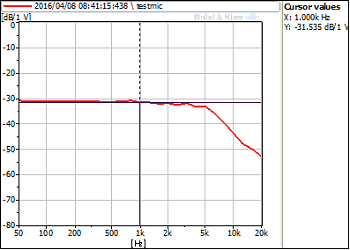

Frequency range	20-5000HZ
Maximum SPL	110dB
S/N Ratio	74dB

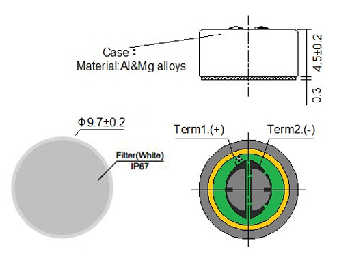

Dimensions	9.7*4.5mm





We specialize in manufacturing IP67-rated waterproof mic components with strict in-line quality control and automated production systems. Our main strength lies in our consistency and reliability under extreme environmental conditions, giving you peace of mind whether your application is indoors or outdoors. From media professionals to public service users, our electret microphone solutions deliver trust-worthy performance.
