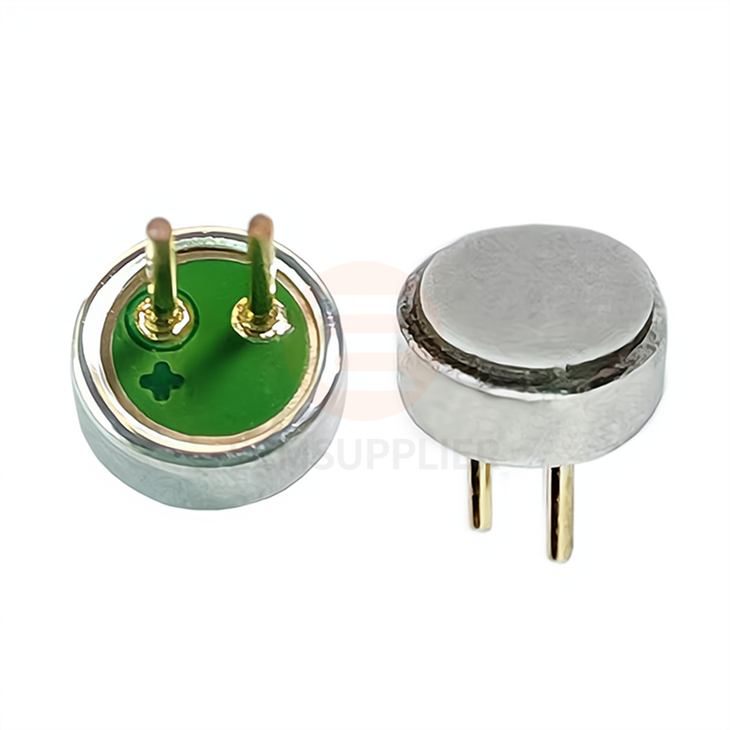

4015 Cylindrical Condenser MIC with Pin

Engineered for precision and portability, the 4015 Cylindrical Condenser MIC with Pin features a compact 4.0×1.5mm form factor and offers a wide frequency response from 50Hz to 20kHz. Its omnidirectional pickup pattern ensures balanced sound from all directions, making it ideal for near-field vocal applications like headset microphones or lavaliers. With a sensitivity of -40±2dB, an output impedance of 2.2KΩ, and IP67-rated resilience, it offers excellent durability and performance in varied environments.



• Accurate sound capture requires a high sensitivity: -40±2dB.
• For flexible audio performance, wide frequency range: 50–20000Hz.
• For little background noise and clean sound, a reliable S/N ratio is 60dB.
• IP67 rating: strong performance in demanding surroundings depends on dust and water resistance.



Compact Headset Microphone Unit Designed to fit seamlessly into communication headsets, the 4015 mic captures clear, natural voice with minimal distortion-perfect for call centers, gaming headsets, or teleconferencing devices.	Discreet Lavalier Audio Capture Slim and lightweight, the 4015 Cylindrical Condenser MIC with Pin integrates effortlessly into lapel microphones for broadcast, stage use, or interviews, offering unobtrusive, high-fidelity voice pickup.





Name	Parameter
Model	ECM-B4015AP40-IP67
Sensitivity	-40±2dB
Output impedance	2.2KΩ
Directivity	omni

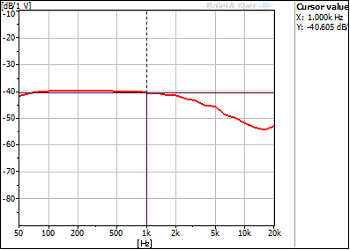

Frequency range	50-20000HZ
Maximum SPL	110dB
S/N Ratio	60dB

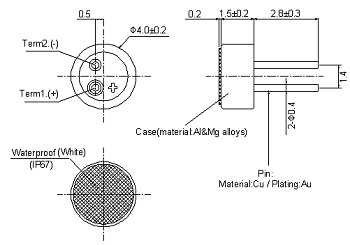

Dimensions	4.0*1.5mm





Our dedication to professional development and manufacturing discipline ensures that every 4015 Cylindrical Condenser MIC with Pin is made with care and precision. We focus on quality through skilled personnel and rigorous testing processes, delivering audio components that combine innovation, reliability, and consistency-ideal for brand manufacturers and system integrators.
