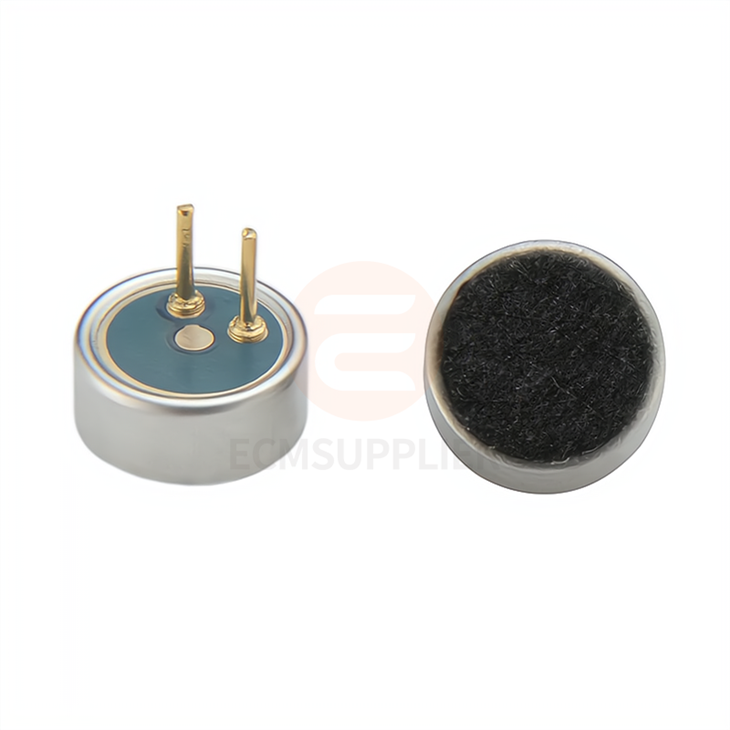

Electret Condenser Microphone Pickup Head
The Electret Condenser Microphone Pickup Head ECM-B4015AP-30 is designed with a pin-type interface, ensuring simple and secure installation. With a sensitivity of -30±2dB, a frequency range of 50-20KHz, and a S/N ratio of 65dB, it provides high-fidelity audio performance for various applications.
Features
- Pin-Type Connection: Easy to install for efficient assembly.
- High Sensitivity: Precise sound pickup with a sensitivity of -30±2dB.
- Omni-Directional Design: Uniform audio capture from all directions.
- Wide Frequency Range: Covers 50-20KHz for comprehensive sound reproduction.
- Compact and Practical: Small form factor of 4 × 1.5mm.
- Stable SPL Handling: Supports up to 100dB SPL, ideal for controlled environments.
Applications
specifications
| Name | Parameter |
| Sensitivity |
-30±2dB |
| Output impedance |
2.2kΩ |
| Directivity | Omnidirectional |

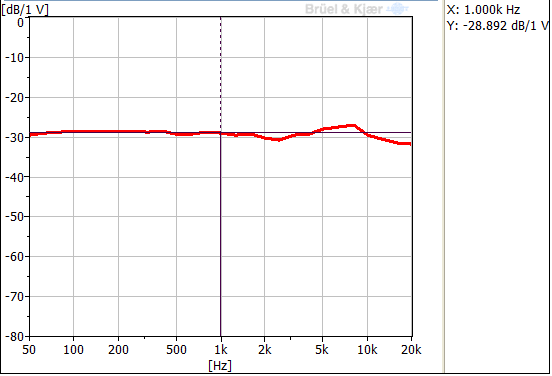

| Frequency range | 50-20KHz |
| Maximum SPL |
100dB |
| S/N Ratio |
65dB |

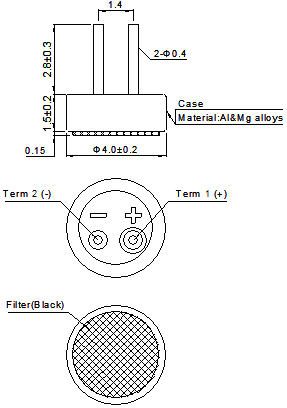

| Dimensions | 4 x 1.5mm |
|
|
|
Why Choose Us
By selecting the ECM-B4015AP-30, you're choosing a microphone pickup head that blends cutting-edge design with dependable functionality. Its pin-type connection simplifies the integration process, while its high-fidelity audio performance ensures outstanding results in every application.
Our expertise in electret microphone manufacturing guarantees that each component meets stringent quality standards. Whether you're optimizing for efficiency or sound clarity, the ECM-B4015AP-30 is engineered to exceed your expectations.
Partner with us to enhance your production capabilities with precision-crafted audio solutions!
