1910 Dynamic Microphone Capsules

Designed for professional voice applications, this compact 19.1 x 10mm dynamic capsule features a cardioid pickup pattern, delivering focused audio capture with minimal background noise. With a sensitivity of -58±3dB and a low 250Ω output impedance, it ensures compatibility with a wide range of audio equipment. The frequency response from 100Hz to 10,000Hz provides natural vocal tone, making it suitable for compact handheld systems, headsets, and communication terminals.



• High Sensitivity: -58±3dB ensures clear and detailed sound capture.
• Wide Frequency Range: Covers 100-10000Hz for versatile audio applications.

• Durable Design: Built to withstand rigorous use in professional settings.



Durable Performance for Portable Microphones Ideal for compact handheld mics and wireless systems, this capsule ensures focused vocal pickup with reduced handling noise. Its directional pattern helps isolate the speaker's voice even in busy or acoustically challenging venues, making it suitable for mobile announcers, event hosts, and field interview tools.	Efficient Voice Capture for Headsets & Consoles Designed for headsets and desktop intercoms in customer service or dispatch environments, this capsule minimizes environmental distractions while maintaining clear voice transmission. Its cardioid design helps eliminate side noise, making conversations more intelligible in multi-person or open-plan settings.





Name	Parameter
Model	ECM-DM1910K250
Sensitivity	-58±3dB
Output impedance	250Ω
Directivity	cardioid

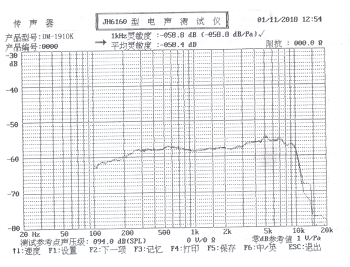

Frequency range	100-10000Hz

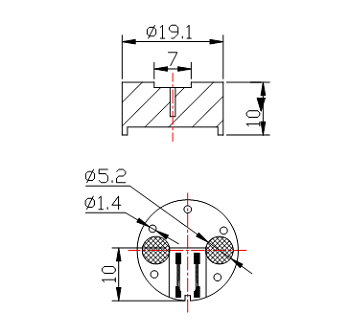

Dimensions	19.1 x 10mm





We specialize in producing microphone capsules that deliver dependable, high-fidelity voice reproduction. This 1910 capsule is designed for applications that demand audio stability and voice clarity - achieved through precision assembly, rigorous testing, and advanced diaphragm engineering.
