2718 Silicon Microphone

The ECM-M2718-4256M is a contemporary MEMS microphone capsule that promises exceptional audio quality in a small package. With a sensitivity range of -39 to -45dB and an output impedance of 300Ω, this microphone capsule guarantees precise and clear sound reproduction. This device's omni-directional directivity makes it perfect for a variety of uses, including professional audio equipment and consumer devices. It is ideal for a variety of applications as it guarantees total sound capture. The capsule's tiny size allows for easy integration into small gadgets, improving their audio capabilities without taking up a lot of room.



• This gadget guarantees accurate and comprehensive sound recording due to its high sensitivity ranges. Its all-around design enables it to catch sound from all angles, resulting in a balanced and genuine audio experience.
• With an amazing frequency range of 100–10000Hz, this device is ideal for a wide range of audio applications.
• The 2.75 x 1.85 x 0.95 mm measurements make it easier to integrate tiny gadgets.
• You can be sure that even at high volume levels, the sound will be clear and undistorted thanks to its maximum SPL of 130dB.





Name	Parameter
Sensitivity	-39-45dB
Output impedance	300Ω
Directivity	omni

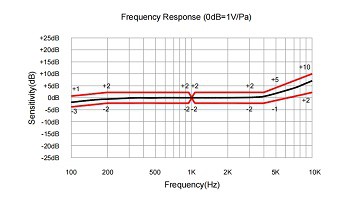

Frequency range	100-10000Hz
Maximum SPL	130dB
S/N Ratio	56dB
Dimensions	2.75 × 1.85 × 0.95mm
