Unidirecional Condenser Microphone Parts

This unidirectional electret condenser microphone (4 x 1.5mm) is designed for precise sound capture in space-constrained devices. With a sensitivity of -30±2dB and a frequency response of 100Hz–16kHz, it delivers clear, accurate audio for lavalier mics, intercoms, and voice-activated systems. The microphone's unidirectional design minimizes ambient noise, while RF shielding ensures reliable performance in electrically noisy environments. It handles up to 100dB SPL without distortion, and its 2.2kΩ output impedance ensures easy integration into various systems.



• Unidirectional Design: Captures sound from one direction, minimizing background noise and focusing on the target audio source.
• High Sensitivity: -30±2dB sensitivity ensures clear and precise sound capture, even in quieter environments.

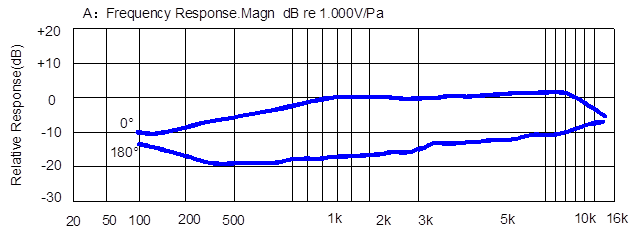

• Wide Frequency Range: 100Hz–16kHz frequency response, ideal for voice recording and general sound capture.
• Compact Size: 4 x 1.5mm, perfect for space-constrained devices without compromising performance.
• Maximum SPL: 100dB, handles high sound pressure levels, maintaining clarity in noisy environments.
• Output Impedance: 2.2kΩ, ensuring easy integration with various systems and reliable performance.



Headset Microphone This microphone is designed for applications that require long-term wear and stability. Its compact size and unidirectional pickup pattern ensure clear voice capture while minimizing background noise. The wearer can move freely without interference from the microphone, making it ideal for scenarios such as public speaking, hosting, or teaching, where interaction and movement are essential. Even during extended use, the microphone remains comfortable, making it perfect for professional environments.

Lavalier Microphone The compact design of this microphone makes it an excellent choice for lavalier applications. It can be easily clipped to clothing, offering high concealability, making it perfect for interviews, meetings, or presentations. The unidirectional pattern ensures clear voice capture while effectively reducing surrounding noise. Due to its small size, the user can move freely without being restricted by the microphone, making it ideal for situations where discreet wear and high-quality audio are required, ensuring clear and natural voice transmission.





Name	Parameter
Model	ECM-B4015UL-30
Sensitivity	-30±2dB
Output impedance	2.2kΩ
Directivity	Unidirectional
Frequency range	100-16KHz
Maximum SPL	100dB
S/N Ratio	60dB
Dimensions	4 x 1.5mm





We specialize in high-quality microphone components crafted for seamless integration into custom audio systems. The Unidirecional Condenser Microphone Parts are engineered to capture sound precisely and deliver reliable performance across a wide range of applications. With decades of experience in the industry, we focus on providing products that ensure consistent clarity, long-lasting durability, and excellent sound quality, making us a trusted partner for all your microphone component needs.
