1508 Dynamic Microphone Capsules Pickup

Engineered for compact audio solutions, this 15 x 8mm dynamic microphone capsule provides reliable cardioid pickup with a sensitivity of -60±3dB and a 600Ω output impedance. Its 100–9000Hz frequency response is tailored for natural voice reproduction, making it a strong fit for lightweight handheld microphones, compact intercom units, and communication headsets. Despite its small footprint, it consistently captures clear speech while rejecting unwanted ambient noise.



• Compact Design: Measuring 15 x 8mm, it is perfect for seamless integration into various audio devices.
• Cardioid Directivity: Effectively isolates sound sources, reducing ambient noise.
• High Sensitivity: -60±3dB ensures accurate capture of subtle audio details.



Small Capsule, Big Impact for Portable Mics Ideal for slim handheld mics or clip-on transmitters, this capsule captures clean vocals while minimizing noise pickup from the surroundings. Its cardioid pattern is perfect for controlled environments like small venues, portable PA systems, or field interviews where compactness is key without sacrificing sound directionality.	Streamlined Voice Clarity for Lightweight Headsets Designed for call centers, dispatch stations, or compact intercoms, this capsule delivers focused voice transmission with minimal ambient pickup. Its small size integrates seamlessly into slim headset arms, ensuring comfort for extended use while maintaining professional audio clarity in shared or noisy workspaces.





Name	Parameter
Model	ECM-DM1508K600
Sensitivity	-60±3dB
Output impedance	600Ω
Directivity	cardioid

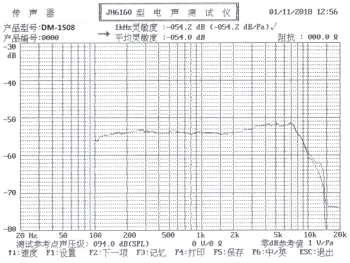

Frequency range	100-9000Hz

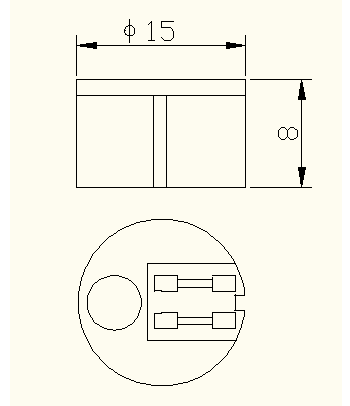

Dimensions	15 x 8mm





We specialize in compact microphone components that don't compromise on performance. This capsule is designed with consistent directional sensitivity and tight acoustic tolerance-ideal for manufacturers who need high-efficiency voice capture in limited space. Every unit is built and tested for long-term reliability and clarity.
