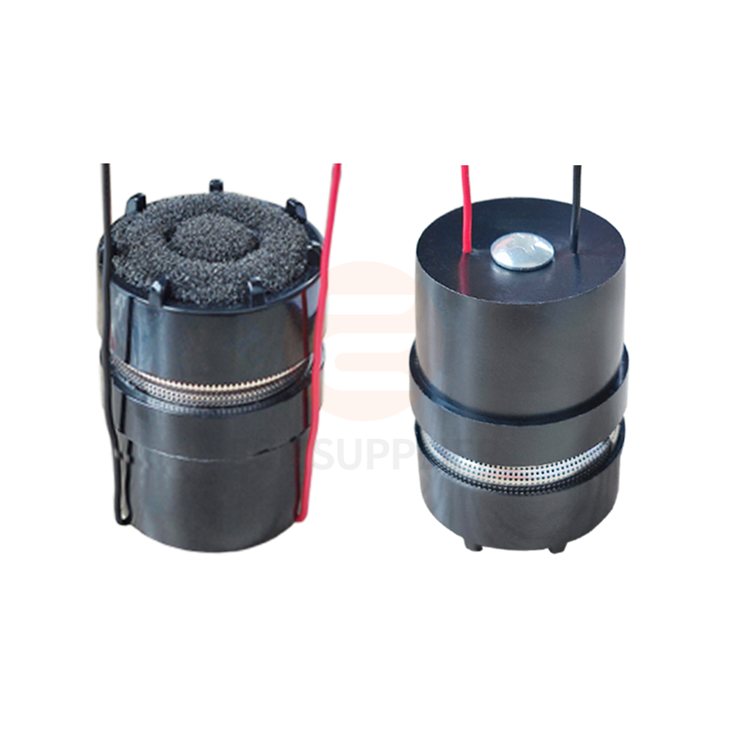

30mm Dynamic Microphone Head

The ECM-DM58K600 combines high sensitivity and robust construction for clear audio capture in diverse environments. With a sensitivity of -54±3dB and an output impedance of 600Ω, this capsule ensures precise sound reproduction. Its cardioid directivity pattern focuses on capturing sound from the front while minimizing background noise, making it ideal for studio recordings, live performances, and broadcasting. The capsule's dimensions of 30 x 41.4mm allow for easy integration into microphone assemblies and other audio equipment.



• High Sensitivity: -54±3dB for accurate and detailed sound capture.
• Cardioid Directivity: Reduces ambient noise by focusing on sound from the front.

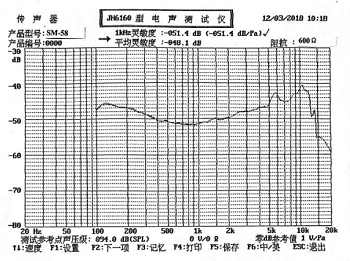

• Wide Frequency Range: Covers 50-14000Hz, suitable for a variety of audio applications.

• Durable Design: Robust construction ensures reliability and longevity.





Name	Parameter
Sensitivity	-54±3dB
Output impedance	600Ω
Directivity	cardioid
Frequency range	50-14000HZ

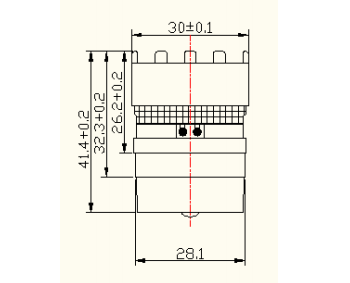

Dimensions	30 x 41.4mm
