Hey there! As a supplier of the 9750 electret microphone, I often get asked about its output impedance. So, I thought I'd write this blog to break it down for you all.

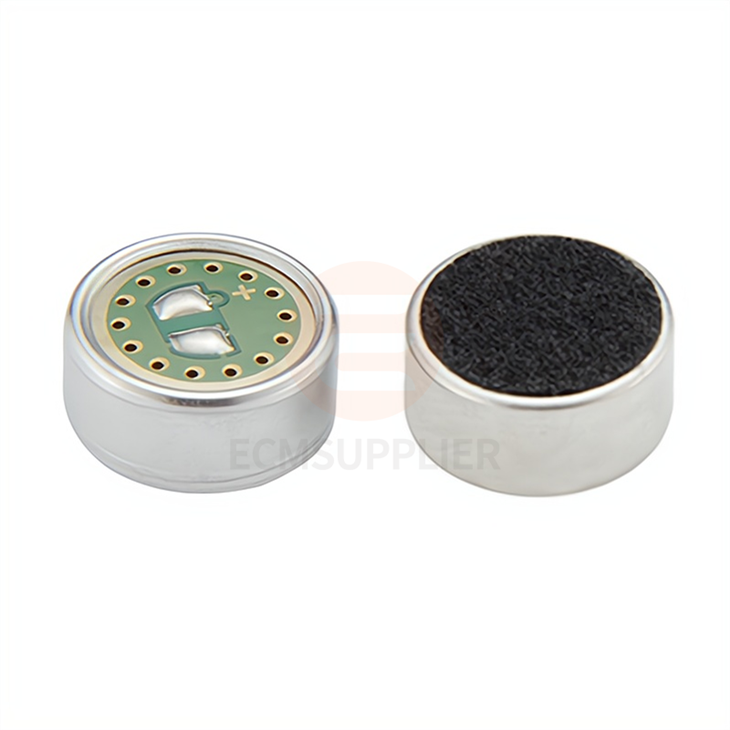

First off, let's quickly go over what electret microphones are. Electret microphones are a type of condenser microphone. They've got an electret material, which is like a permanent capacitor. This means they don't need an external power source to polarize the capacitor, unlike some other condenser mics. They're super popular because they're small, cheap, and have good sound quality. And our 9750 electret microphone is no exception! You can check it out here: 9750 Electret Microphone.
Now, let's talk about output impedance. Output impedance is basically the resistance that the microphone presents to the load connected to it, like an amplifier or a mixer. It's a crucial factor because it affects how well the microphone can transfer its signal to the next stage of the audio chain. If the output impedance is too high or too low compared to the input impedance of the connected device, you can end up with signal loss, distortion, or other audio issues.
The output impedance of the 9750 electret microphone is typically in the range of a few thousand ohms. For our 9750 model, the output impedance is around 2.2k ohms. This value is carefully chosen to work well with a wide range of audio equipment. Most professional audio devices have an input impedance in the range of 10k to 100k ohms. When the output impedance of the microphone is much lower than the input impedance of the connected device, it's called a "bridging" configuration. This is ideal because it allows for maximum signal transfer and minimizes the loading effect on the microphone.
Why is this important? Well, if the output impedance is too high, the microphone won't be able to drive the load effectively. You might notice a drop in volume or a loss of high - frequency response. On the other hand, if the output impedance is too low, it can cause problems with the power supply and may even damage the microphone or the connected device.

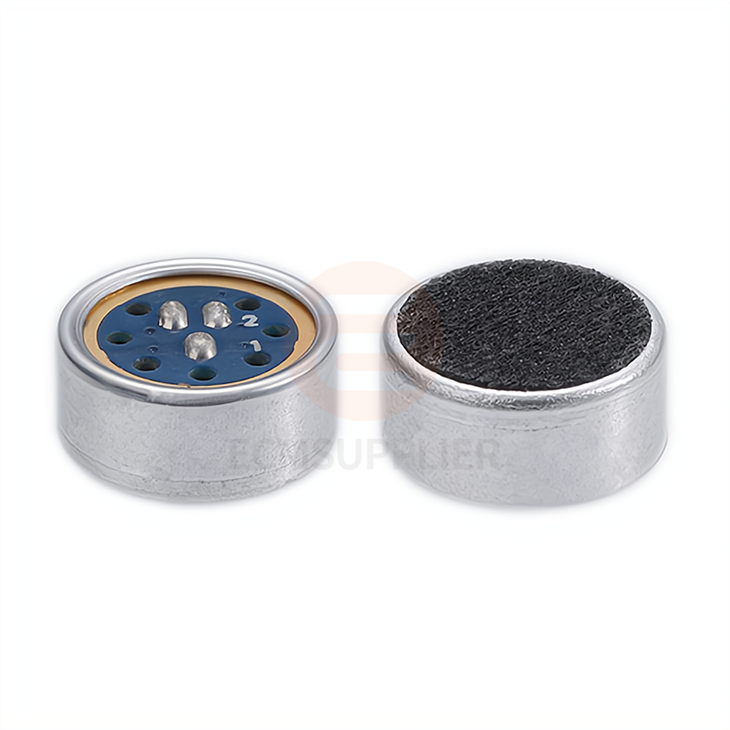

Let's take a look at how the output impedance of the 9750 electret microphone compares to some other similar products. We also offer a 10mm Unidirectional Microphone Capsule and a Professional Mini Electret Microphone. The 10mm capsule has an output impedance of around 1k ohms, which is a bit lower than the 9750. This can be beneficial in some applications where you need a stronger signal drive. The professional mini electret microphone, on the other hand, has an output impedance of about 3.3k ohms, which is slightly higher than the 9750.
When you're choosing a microphone, it's important to consider the output impedance along with other factors like sensitivity, frequency response, and directionality. For example, if you're using the microphone in a live sound setup, you'll want to make sure it can work well with the mixing console's input impedance. If you're recording in a studio, you might be more concerned with getting the best possible frequency response and signal - to - noise ratio.
Another thing to keep in mind is that the output impedance can change slightly with temperature and humidity. However, our 9750 electret microphone is designed to be stable under normal operating conditions. We've done a lot of testing to ensure that the output impedance remains within an acceptable range, even in different environmental conditions.
So, how do you measure the output impedance of the 9750 electret microphone? Well, there are a few ways to do it. One common method is to use a signal generator and an oscilloscope. You apply a known signal to the microphone and measure the output voltage across different loads. By using Ohm's law and some simple calculations, you can determine the output impedance. But if you're not an electronics expert, it's usually best to rely on the specifications provided by the manufacturer.
In conclusion, the output impedance of the 9750 electret microphone is an important characteristic that affects its performance and compatibility with other audio equipment. Our 9750 model, with its 2.2k ohm output impedance, is designed to work well in a variety of applications. Whether you're a professional audio engineer, a musician, or just someone who wants to record high - quality audio, the 9750 electret microphone is a great choice.
If you're interested in purchasing our 9750 electret microphone or have any questions about its output impedance or other features, don't hesitate to reach out for a procurement discussion. We're here to help you find the best audio solution for your needs.
References
- General knowledge of electret microphones and audio engineering principles.
