Electret microphones are widely used in various audio applications, but can they capture ultrasound? Let's analyze this question from a few perspectives:
1. Working Principle of Electret Microphones
Electret microphones are a type of condenser microphone that operates based on the changes in capacitance between two plates.
When sound waves enter the microphone, the diaphragm vibrates. This vibration alters the distance between the diaphragm and the backplate, causing variations in capacitance. These variations generate corresponding changes in the electric charge, which are then output as electrical signals.
2. Frequency Response Range of Electret Microphones
Electret microphones typically have a specific frequency response range that determines the frequencies they can capture.

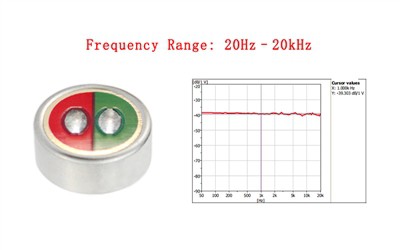

In general, electret microphones are designed to capture human voices and other everyday sounds. Their frequency response is primarily focused on the range of human hearing, which is between 20Hz and 20kHz.
3. Characteristics of Ultrasound
Ultrasound refers to sound waves with frequencies higher than the upper limit of human hearing (approximately 20kHz). It has strong penetration and good directionality, making it widely used in medical, testing, and other fields.
However, since the frequency of ultrasound exceeds the range of human hearing and conventional microphones, standard electret microphones cannot effectively capture it.
4. Possibility of Electret Microphones Capturing Ultrasound
While it is theoretically possible for specially designed microphones to capture ultrasound, this is not the intended function of conventional electret microphones.
Capturing ultrasound requires a microphone with a much higher frequency response range. Even if an electret microphone could detect ultrasound, its conversion efficiency and signal quality might not be adequate for accurate and clear results.
Additionally, the propagation characteristics of ultrasound differ significantly from conventional sound waves, posing additional challenges for electret microphones.
In summary, although electret microphones might theoretically have some capacity to capture ultrasound, their design and performance limitations make it difficult for them to do so effectively in practice.
If capturing and processing ultrasound signals is necessary, it is recommended to use specially designed ultrasonic sensors or transducers.
