As a supplier of uni - directional microphones, I often get asked about the maximum sound pressure level (SPL) of these devices. Understanding the maximum SPL is crucial for both professional audio engineers and casual users, as it determines the microphone's ability to handle loud sounds without distortion. In this blog post, I'll delve into the concept of maximum SPL, how it affects uni - directional microphones, and what you should consider when choosing a microphone based on this specification.
What is Sound Pressure Level?
Sound pressure level is a measure of the effective pressure of a sound wave relative to a reference value. It is expressed in decibels (dB) and is used to quantify the intensity of sound. The reference value for SPL is usually (20\ \mu Pa), which is approximately the threshold of human hearing at (1\ kHz).
The formula for calculating SPL is:
[SPL = 20\log_{10}\left(\frac{p}{p_{ref}}\right)]
where (p) is the measured sound pressure and (p_{ref}) is the reference sound pressure ((20\ \mu Pa)).
Maximum Sound Pressure Level in Uni - Directional Microphones
The maximum SPL of a uni - directional microphone refers to the highest sound pressure level that the microphone can handle without producing significant distortion. When the sound pressure exceeds the maximum SPL rating, the microphone will start to clip, which means that the peaks of the sound wave are being cut off. This results in a distorted and unpleasant sound quality.
The maximum SPL is typically specified at a certain total harmonic distortion (THD) level, usually (0.5%) or (1%). For example, a microphone with a maximum SPL of (130\ dB SPL) at (1%) THD means that the microphone can handle sound pressures up to (130\ dB) while keeping the total harmonic distortion below (1%).
Factors Affecting the Maximum SPL of Uni - Directional Microphones
Several factors can affect the maximum SPL of a uni - directional microphone:
Diaphragm Design
The diaphragm is the part of the microphone that vibrates in response to sound waves. A thicker and more rigid diaphragm can generally handle higher sound pressures without distorting. Microphones with larger diaphragms also tend to have a higher maximum SPL because they can displace more air and handle greater forces.
Electronics
The electronics inside the microphone, such as the pre - amplifier and the output stage, can also limit the maximum SPL. If the electronics are not designed to handle high - level signals, they may introduce distortion even if the diaphragm can handle the sound pressure.
Microphone Type
Different types of uni - directional microphones have different maximum SPL capabilities. For example, dynamic microphones are generally more robust and can handle higher sound pressures compared to condenser microphones. This is because dynamic microphones use a coil and magnet to generate an electrical signal, which is less sensitive to high - level signals than the electrostatic principle used in condenser microphones.
Applications and Maximum SPL Requirements
The maximum SPL requirement for a uni - directional microphone depends on the application:
Live Sound Reinforcement

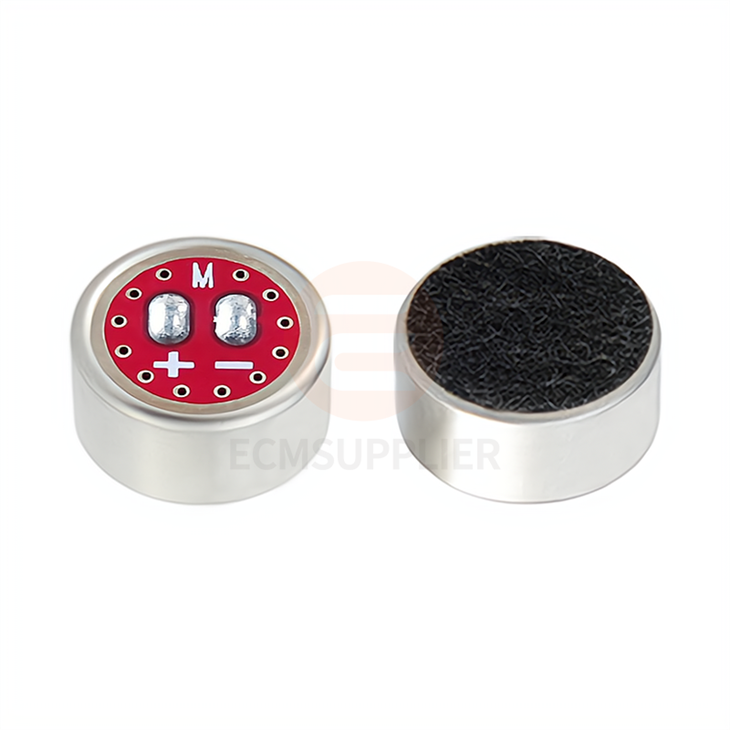

In live sound reinforcement, microphones are often used to pick up loud sources such as electric guitars, drums, and vocals. In these applications, a microphone with a high maximum SPL is essential to avoid distortion. For example, a kick drum can produce sound pressures in excess of (130\ dB SPL), so a microphone with a maximum SPL of at least (140\ dB SPL) is recommended. Our 1045 Electret Condenser Microphone is a great choice for live sound applications, with a high maximum SPL and excellent sound quality.
Studio Recording
In studio recording, the sound sources are usually more controlled, and the maximum SPL requirements may be lower. However, for recording loud instruments such as brass or percussion, a microphone with a high maximum SPL is still necessary. Our 25mm Unidirec Electret Microphone Core offers a good balance between maximum SPL and sensitivity, making it suitable for a wide range of studio recording applications.
Broadcast and Conferencing

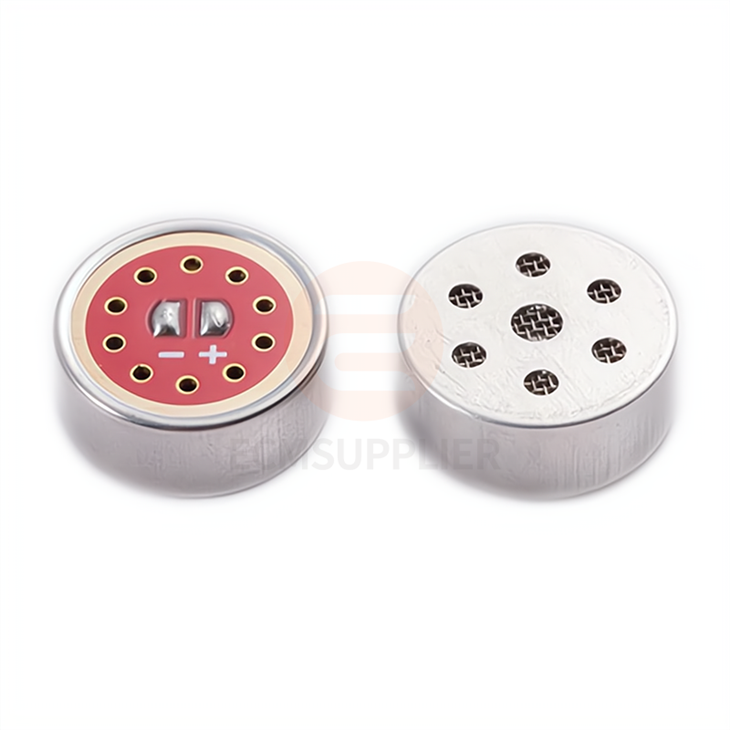

In broadcast and conferencing applications, the sound sources are typically voices, which have a relatively low sound pressure level. A microphone with a maximum SPL of around (120\ dB SPL) is usually sufficient for these applications. Our Uni - Directional High S/N Ratio Mic Pickups are designed to provide clear and accurate voice reproduction with a reasonable maximum SPL for broadcast and conferencing use.
Choosing the Right Uni - Directional Microphone Based on Maximum SPL
When choosing a uni - directional microphone based on maximum SPL, consider the following:
Know Your Sound Sources
Understand the sound pressure levels of the sources you will be recording or amplifying. If you are working with loud instruments or in a high - volume environment, choose a microphone with a high maximum SPL.
Consider the Distortion Level
Pay attention to the THD specification at the maximum SPL. A lower THD means less distortion, which is important for high - quality audio.
Balance with Other Specifications
Don't focus solely on the maximum SPL. Consider other important specifications such as sensitivity, frequency response, and directivity pattern to ensure that the microphone meets your overall audio requirements.
Conclusion
The maximum sound pressure level is an important specification to consider when choosing a uni - directional microphone. It determines the microphone's ability to handle loud sounds without distortion, which is crucial for many audio applications. By understanding the factors that affect the maximum SPL and choosing the right microphone based on your specific needs, you can ensure that you get the best possible audio quality.
If you are in the market for a uni - directional microphone and need help choosing the right one for your application, feel free to contact us. Our team of experts is always ready to assist you in finding the perfect microphone for your needs. We offer a wide range of uni - directional microphones with different maximum SPL ratings and other specifications to meet the diverse requirements of our customers. Whether you are a professional audio engineer or a casual user, we have the right microphone for you.
References
- Beranek, Leo L. "Acoustics." American Institute of Physics, 1954.
- Everest, F. Alton. "Master Handbook of Acoustics." McGraw - Hill, 2001.
- Davis, Glen. "The Microphone Book." Hal Leonard Corporation, 2001.
