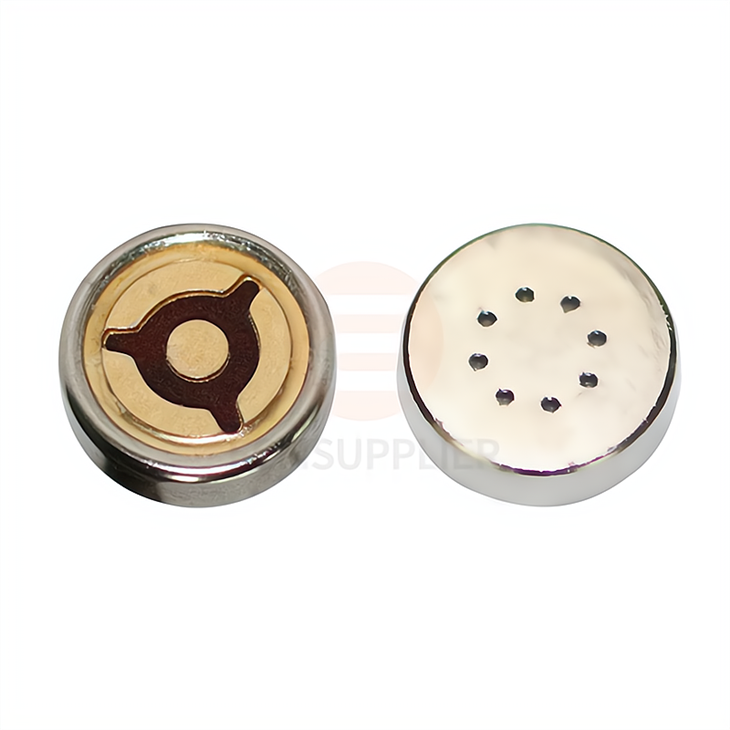

4013 SMT Microphone Capsules

High-performance surface mount devices (SMDs) like the 4013 SMT Microphone Capsules are designed to provide exceptional sound quality in a small package. This capsule's 2.2KΩ output resistance and -29±2dB sensitivity provide accurate and clear sound reproduction. Since it is omnidirectional, sound may be detected from any direction. This makes it perfect for a range of applications, from professional audio equipment to home electronics. The capsule's 4 x 1.3 mm dimensions make it easy to attach to small devices, improving their audio quality without taking up more room.



• The high sensitivity of -29±2dB is perfect for capturing sound in a clear and precise manner.
• Omni-Directional Directivity: It provides you with a realistic and seamless sound experience by picking up sound from all directions.
• With a broad frequency range of 50 Hz to 16000 Hz, it is helpful for a variety of recording activities.
• Compact Design: Its dimensions of 4 x 1.3 mm allow for simple integration into tiny gadgets.
• High Maximum SPL: 110dB ensures that even at high volumes, the sound is audible.
• Excellent S/N Ratio of 65dB ensures excellent sound quality and little background noise.





Name	Parameter
Sensitivity	-29±2dB

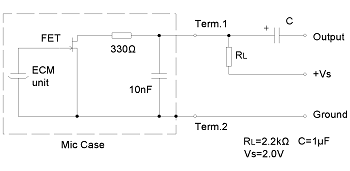

Output impedance	2.2KΩ
Directivity	omni

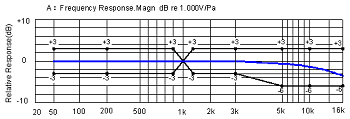

Frequency range	50-16000Hz
Maximum SPL	110dB
S/N Ratio	65dB

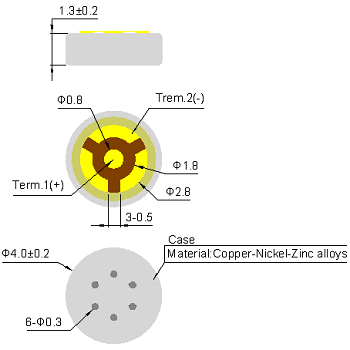

Dimensions	4 x 1.3mm





To ensure optimal performance, the 4013 SMT Microphone Capsules must be stored in a dry, regulated environment. Extreme temperatures and humidity might damage their sensitivity and overall functioning, so it's important to keep them under control. Take great care while handling the capsules to avoid any physical harm or deformation that might compromise their efficacy, both during installation and usage.
